Removal and Installation

STEERING ANGLE SENSOR





Removal and Installation

REMOVAL
1. Remove spiral cable assembly. Refer to Exploded View.

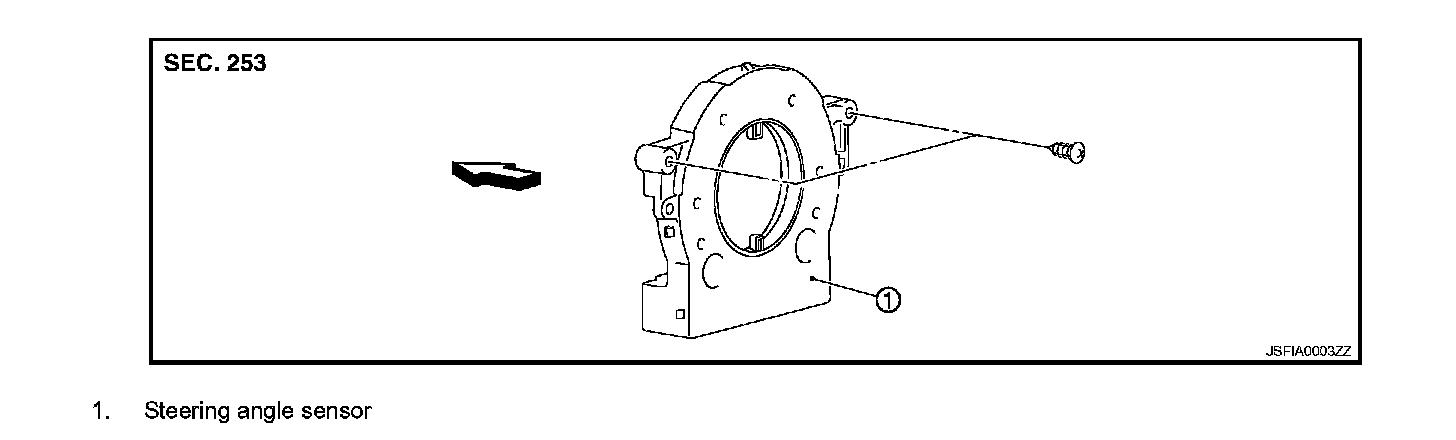

2. Remove steering angle sensor from spiral cable assembly.

INSTALLATION
Note the following, and install in the reverse order of removal.

CAUTION:
- After work, make sure to adjust neutral position of steering angle sensor. Refer to Description.
- Perform 4WAS front actuator adjustment. Refer to Procedures Description Special Repair Requirement (Pattern 1)
