Removal And Installation





4WAS FRONT CONTROL UNIT


Removal and Installation


REMOVAL
1. Turn the ignition switch OFF.
2. Remove the instrument driver lower panel. Refer to Exploded View.
3. Disconnect 4WAS front control unit connectors.

CAUTION:
Disconnect 4WAS front control unit connectors 10 minutes after turning the ignition switch OFF.





4. Remove the bolts of 4WAS front control unit.

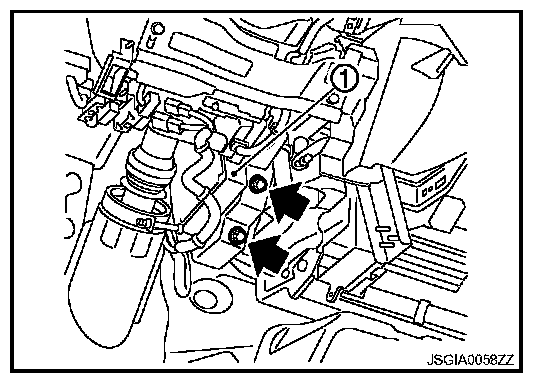

5. Remove the 4WAS front control unit (1).

INSTALLATION
Note following, and install in the reverse order of removal.
- Perform 4WAS front actuator adjustment after replacing 4WAS front control unit. Refer to Special Repair Requirement (Pattern 2) Special Repair Requirement (Pattern 3)
