Neutral Safety Switch: Testing and Inspection

PARK/NEUTRAL POSITION SWITCH


Component Inspection

1.CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

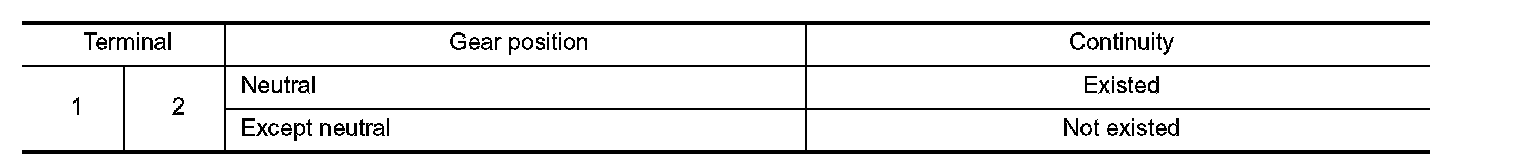

Check continuity between park/neutral position (PNP) switch terminals with control lever turned to 1st to 6th and reverse position.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace park/neutral position (PNP) switch. Refer to Exploded View.
