System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Head

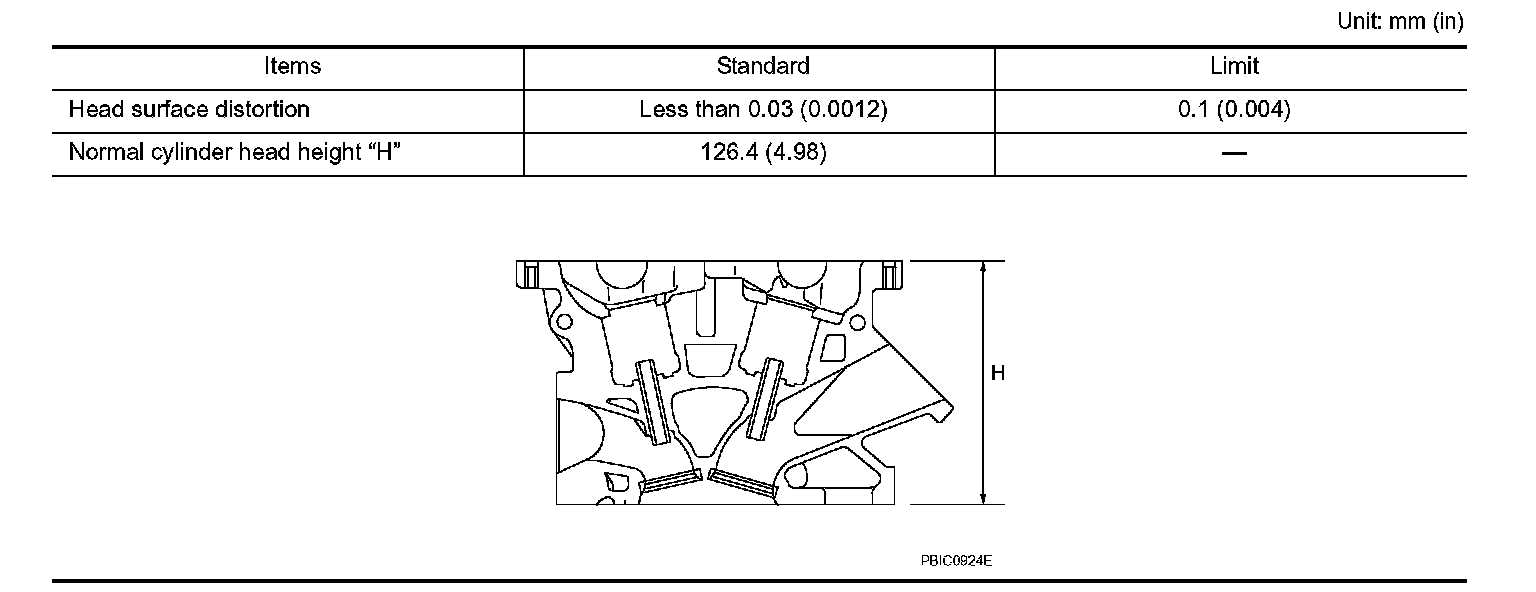

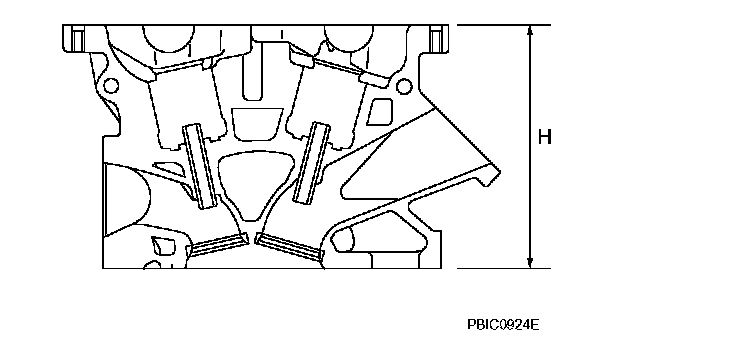

CYLINDER HEAD

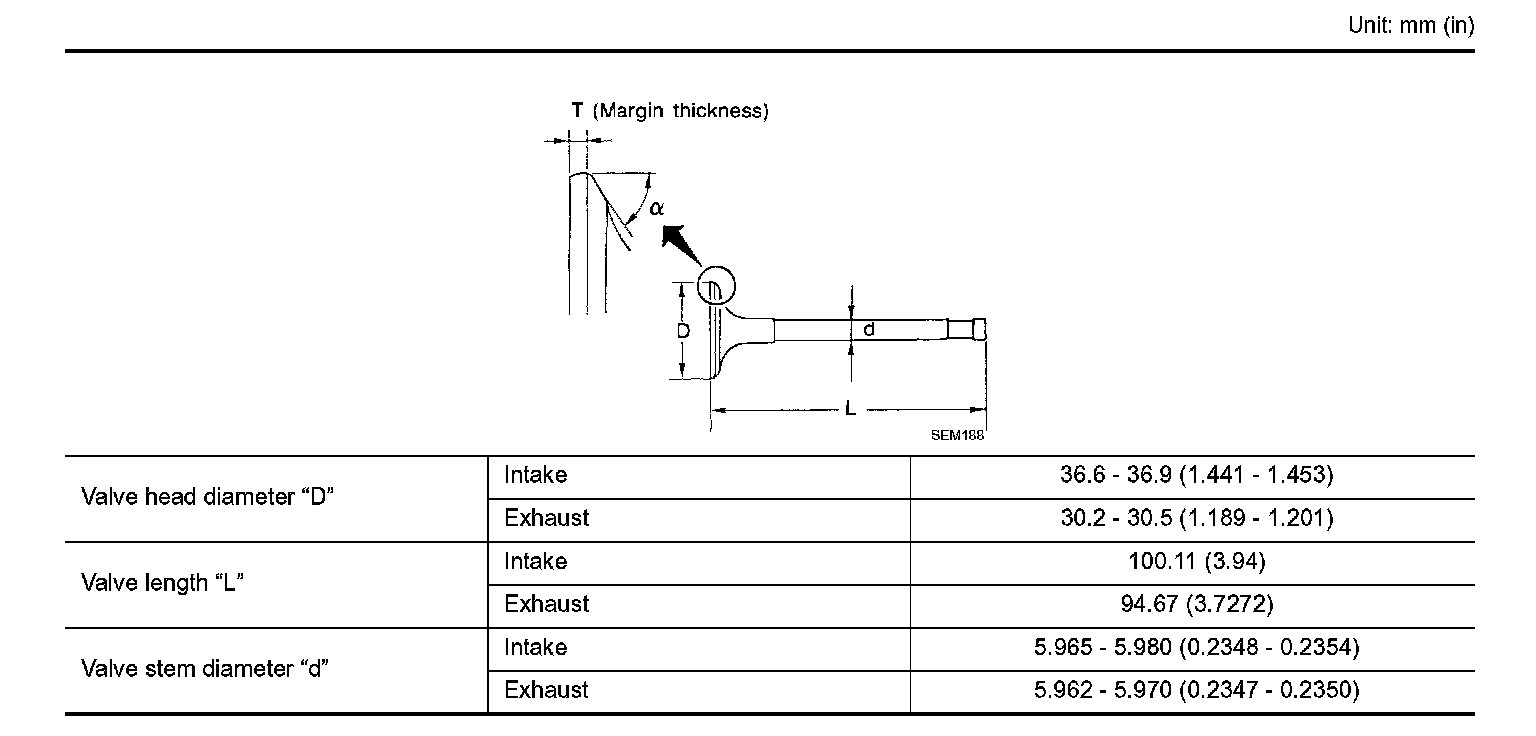

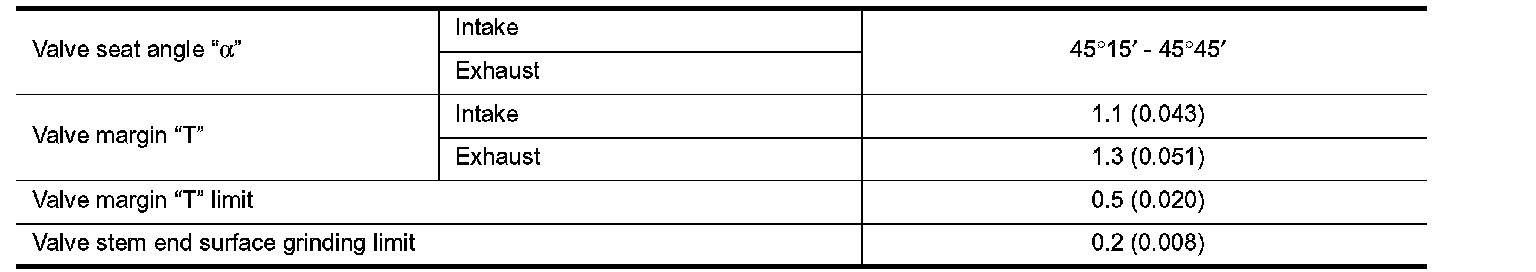

VALVE DIMENSIONS

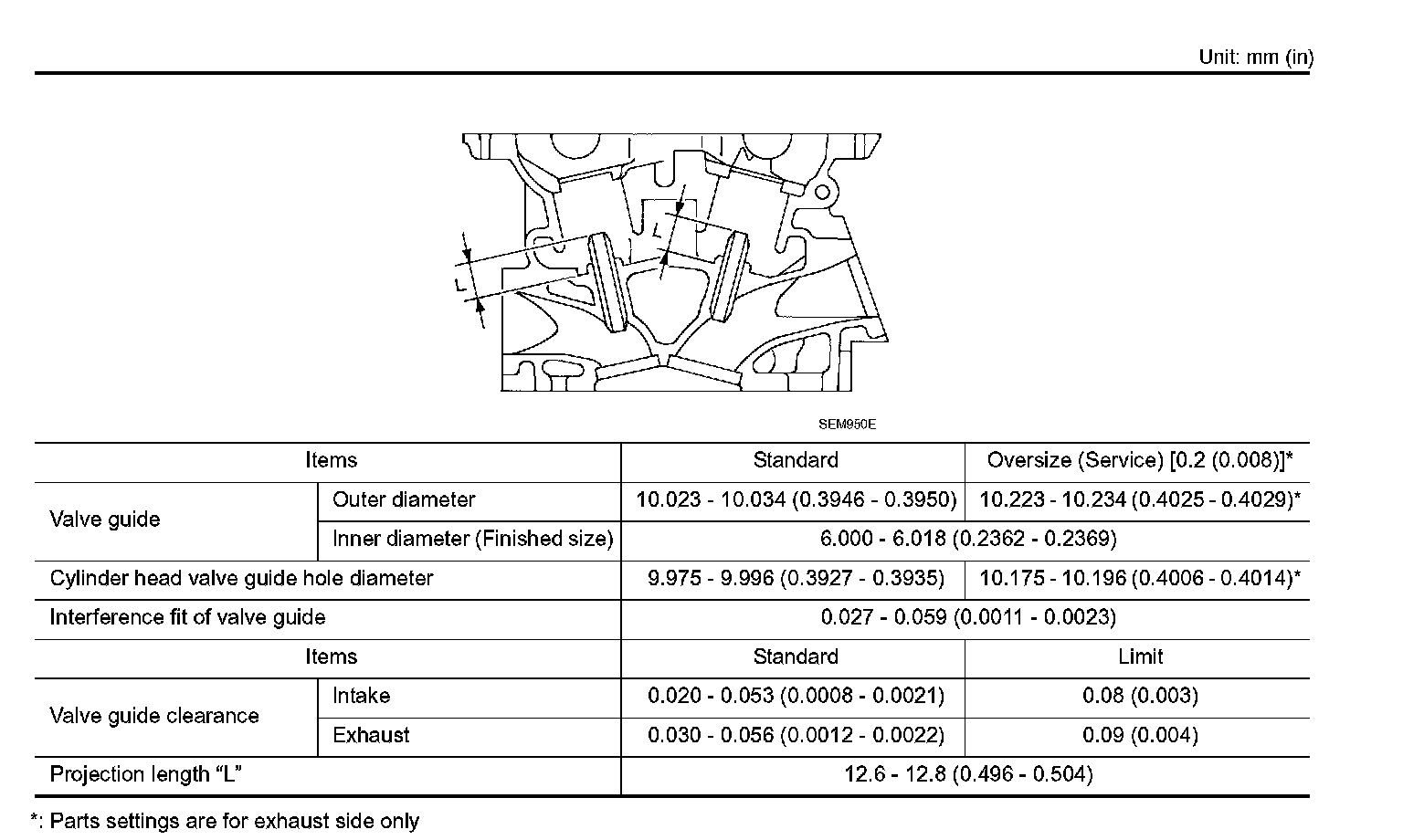

VALVE GUIDE

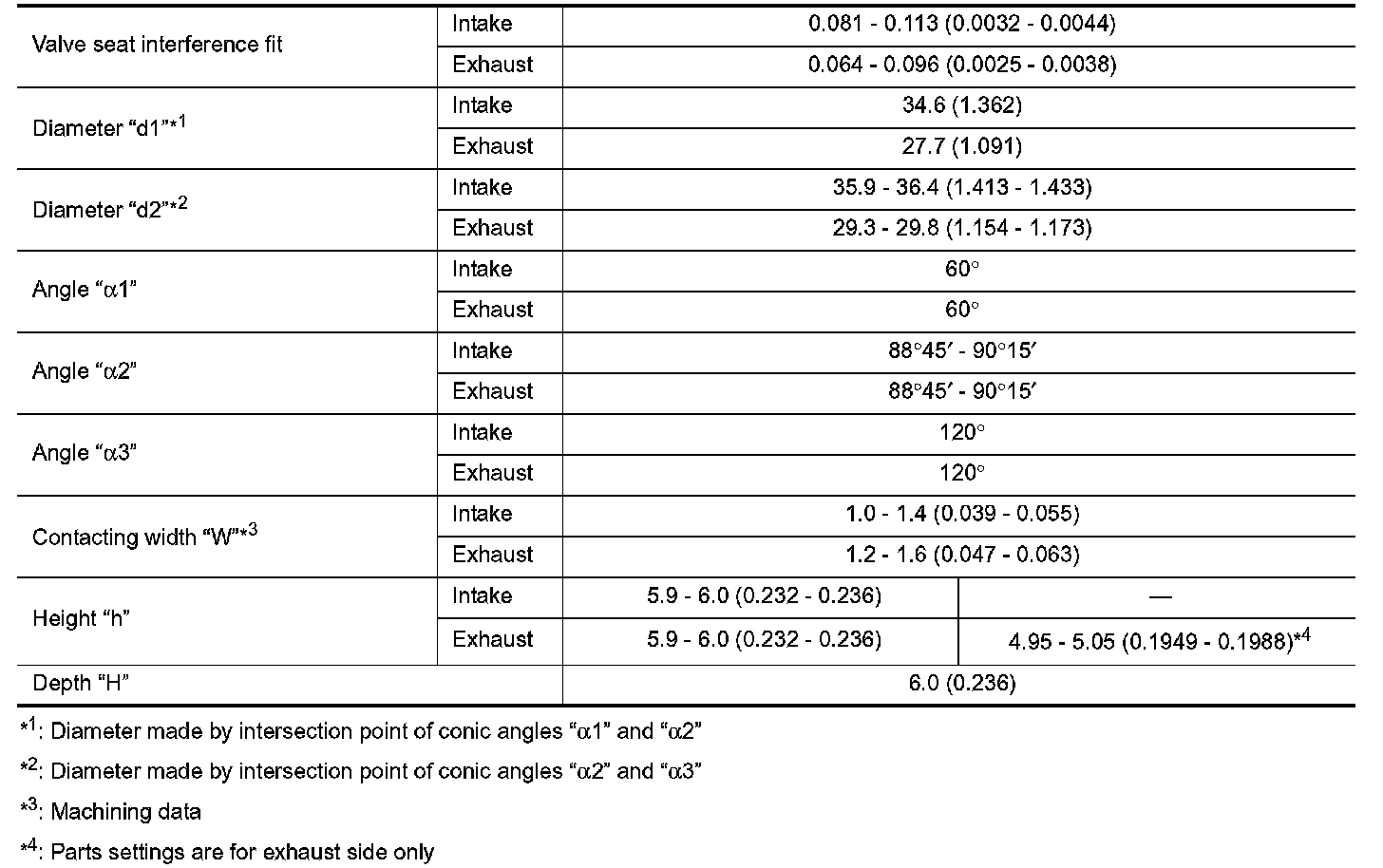

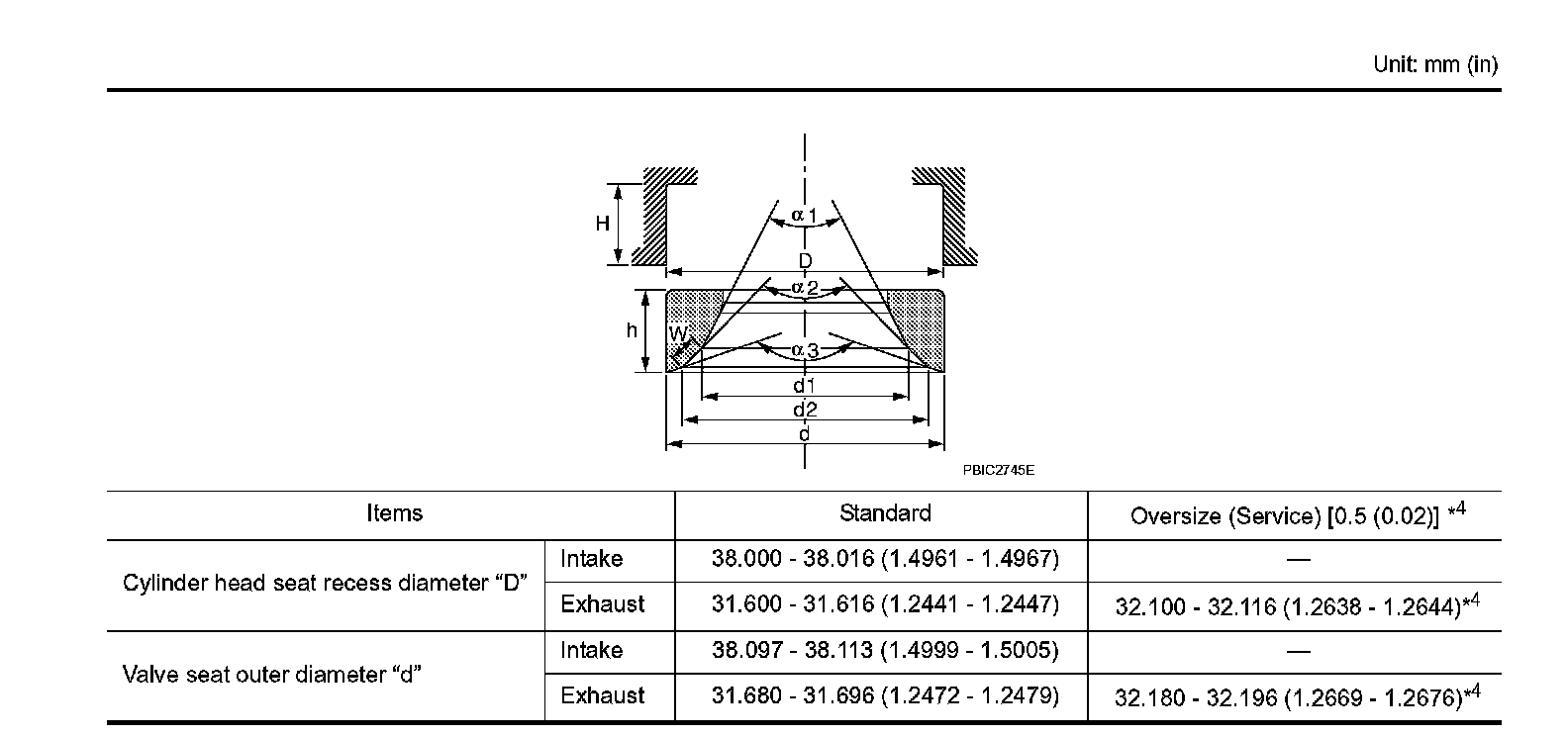

VALVE SEAT

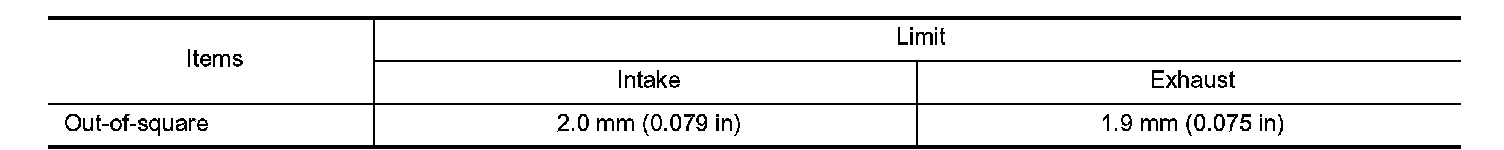

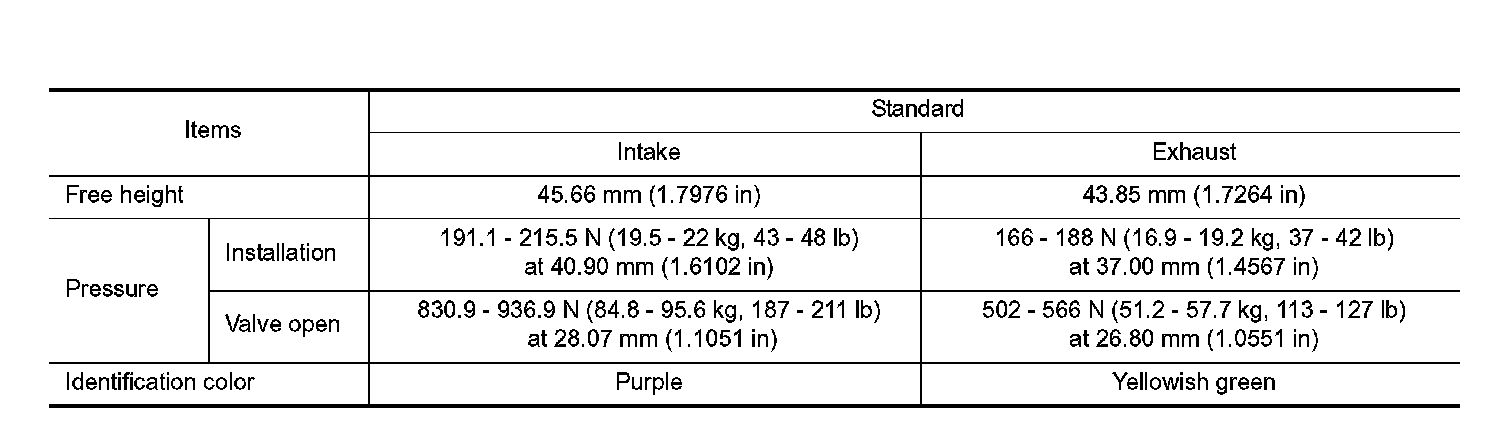

VALVE SPRING










Cylinder Head Bolts

Cylinder head bolts are tightened by plastic zone tightening method.
Whenever the size difference between (B) and (A) exceeds the limit, replace them with new one.





Limit [(B) - (A)] : 0.18 mm (0.0071 in)





Tighten all bolts 105 Nm (11 kg-m, 77 ft-lb)

Completely loosen all bolts 0 Nm (0 kg-m, 0 ft-lb)

Tighten 40.0 Nm (4.1 kg-m, 30 ft-lb)

Turn all bolts 95°

Turn all bolts 95° again

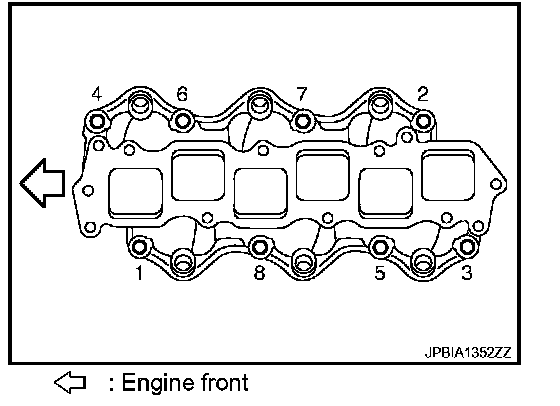

Intake Manifold





1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)

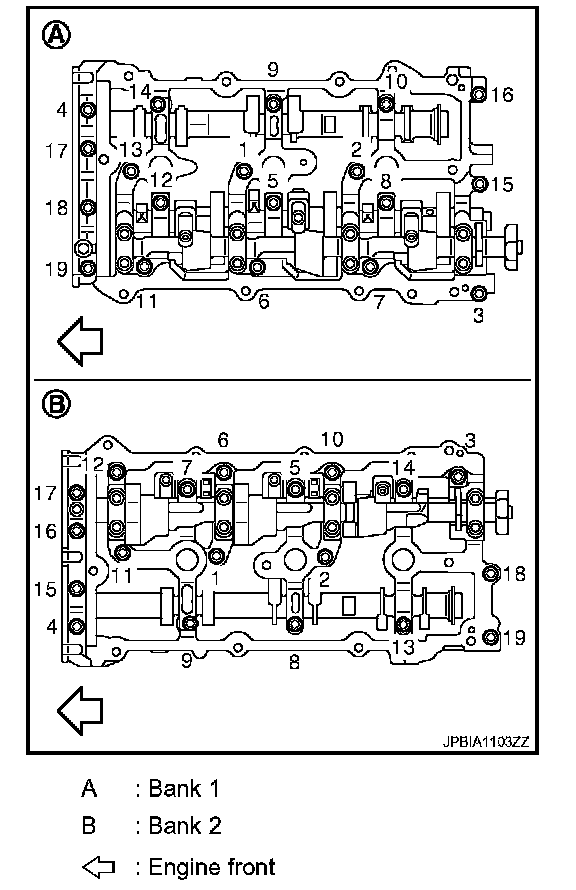

Camshaft Bearing Cap





I 1.96 Nm (0.20 kg-m, 1 ft-lb)

II 5.88 Nm (0.60 kg-m, 4 ft-lb)

III 10.4 Nm (1.1 kg-m, 8 ft-lb)

Camshaft sprockets 103 Nm (11 kg-m, 76 ft. lb.)

Exhaust Manifold





Nuts 30.5 Nm (3.1 kg-m, 22 ft. lb.)
