With Left And Right Ventilation Temperature Separately Control System

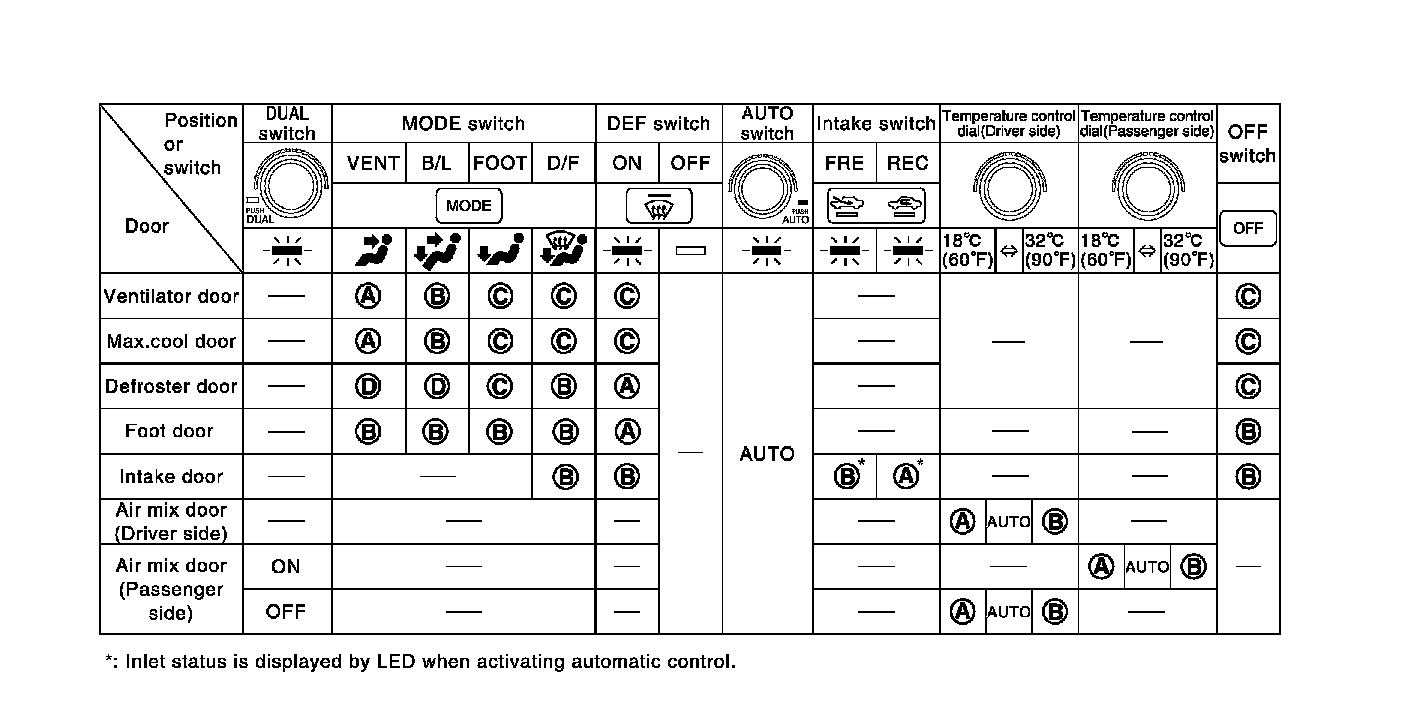

SWITCHES AND THEIR CONTROL FUNCTION

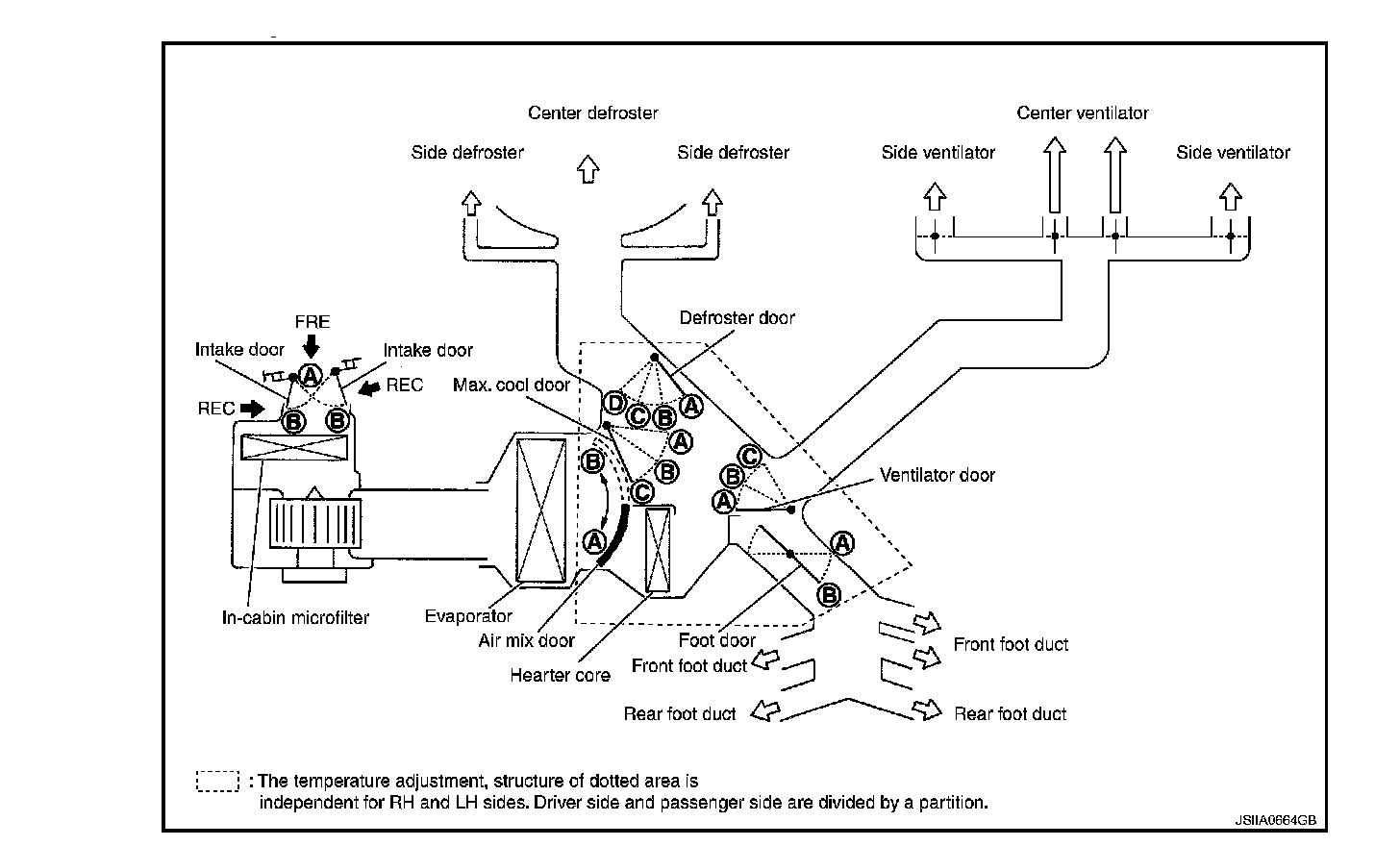

WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CON- TROL SYSTEM WITH LEFT AND RIGHT VENTILATION TEMPERATURE SEPARATELY CONTROL SYSTEM : System Description
