Component Inspection

TRUNK ROOM LAMP SWITCH


Component Inspection

1.CHECK TRUNK ROOM LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect trunk lid lock assembly connector.

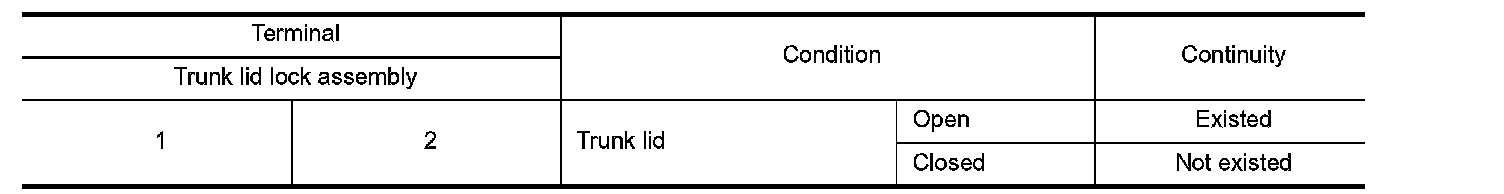

3. Check continuity between trunk lid lock assembly terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace trunk lid lock assembly. Refer to Removal and Installation.
