Removal And Installation

DOOR MIRROR REMOTE CONTROL SWITCH


Removal and Installation


REMOVAL
1. Remove the power window main switch finisher (2). Refer to Service and Repair

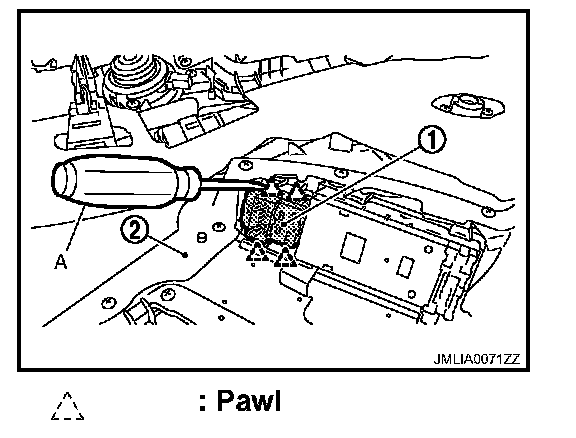

2. Remove door mirror remote control switch (1) from power window main switch finisher (2) using screwdriver (A).

: Pawl


INSTALLATION
Install in the reverse order of removal.
