Scan Tool Testing and Procedures

DIAGNOSIS SYSTEM (PRE-CRASH SEAT BELT)


CONSULT-III Function

Diagnosis for pre-crash seat belt system can be performed using CONSULT-III.

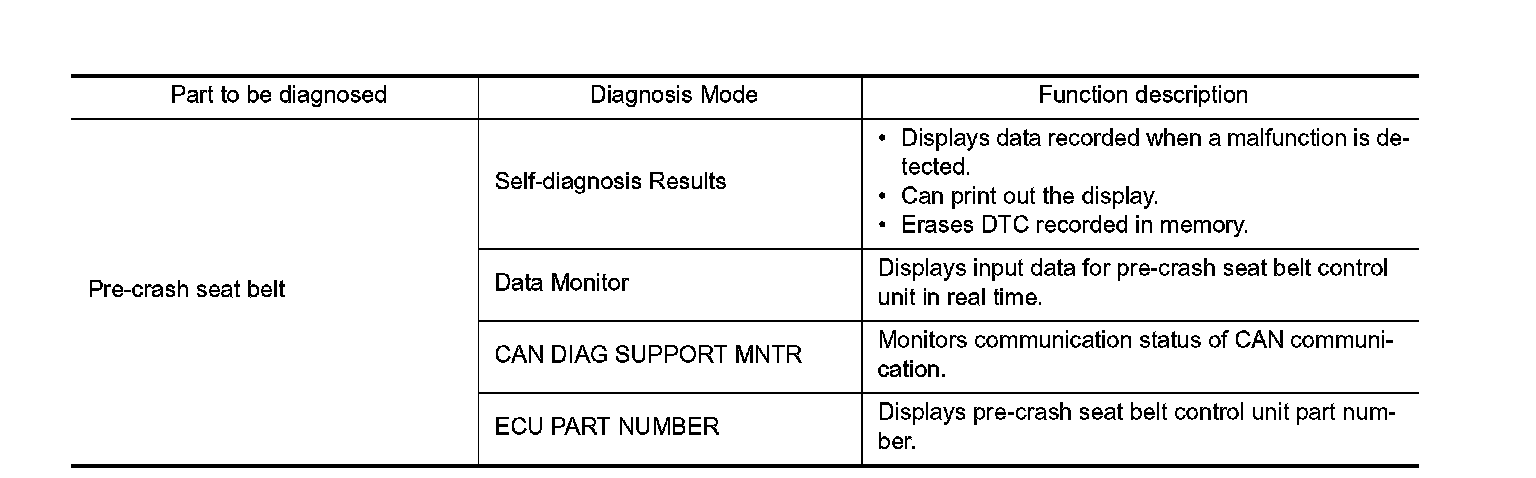

APPLICATION ITEM

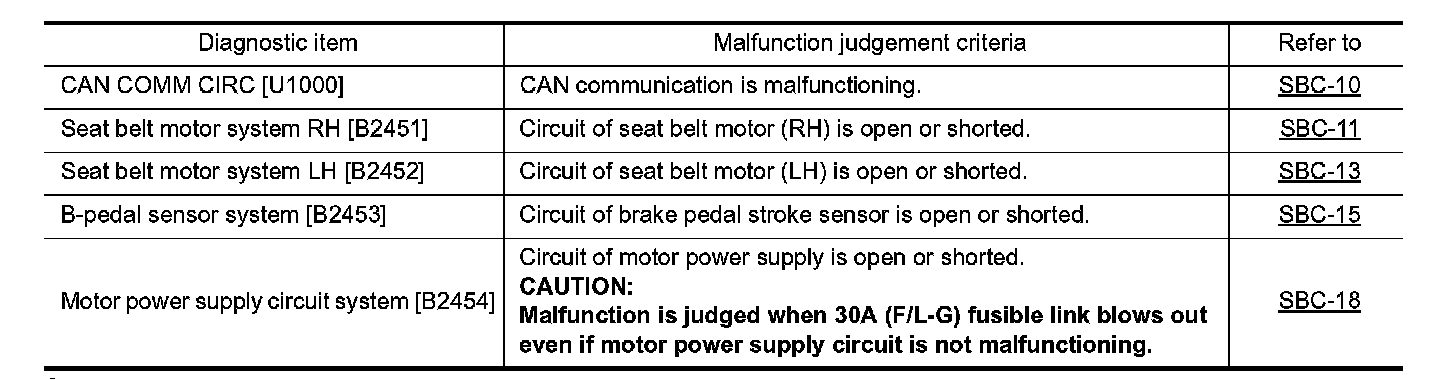

SELF-DIAGNOSIS RESULTS

CAUTION:
When malfunctions are detected in several systems, including the CAN communication [U1000], troubleshoot the CAN communication [U1000].






NOTE:
Timing display judges the status of self-diagnosis results judged from each input signal.
- When malfunction is found in the past and it is normal now, "MEMORY" is displayed.
- When malfunction is found at present or found immediately after the self-diagnosis, "CURRENT" is displayed.
- When malfunction is not found in the past and it is normal now, nothing is displayed.

CAUTION:
Some malfunctions are displayed at low battery voltage (when keeping 7 to 8 V for 2 seconds) even if the system is not malfunctioning. Erase DTC memory and do not replace any parts after making sure that the system is normal especially if the malfunctions are displayed after replacing battery.

DATA MONITOR
