Backup Lamp Switch: Testing and Inspection

BACK-UP LAMP SWITCH


Component Inspection

1.CHECK BACK-UP LAMP SWITCH

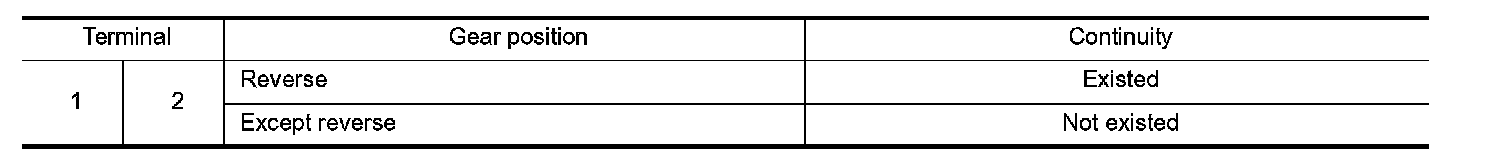

Check continuity between back-up lamp switch terminals with control lever turned to 1st to 6th and reverse position.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace back-up lamp switch. Refer to Exploded View.
