Exploded View
Exploded View
FRONT COMBINATION LAMP
Exploded View

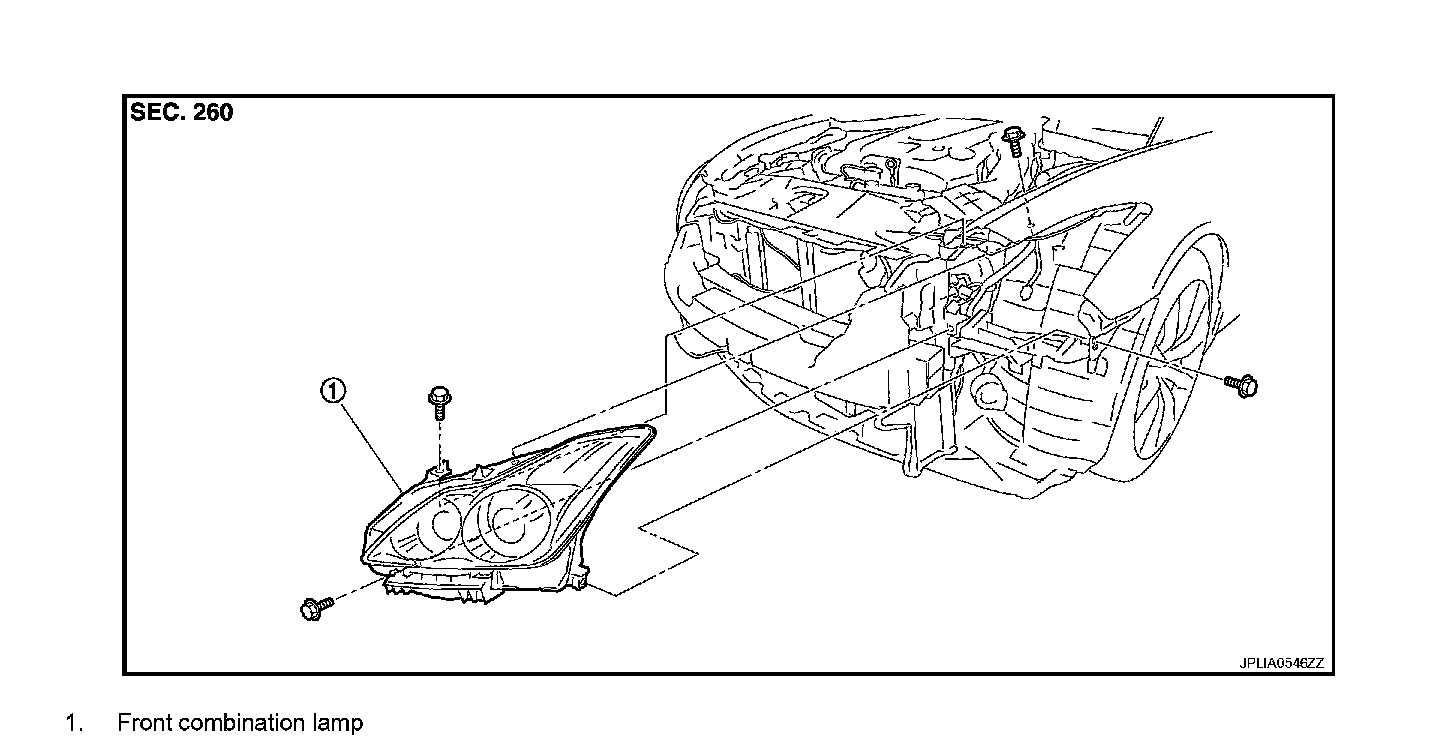

REMOVAL
DISASSEMBLY

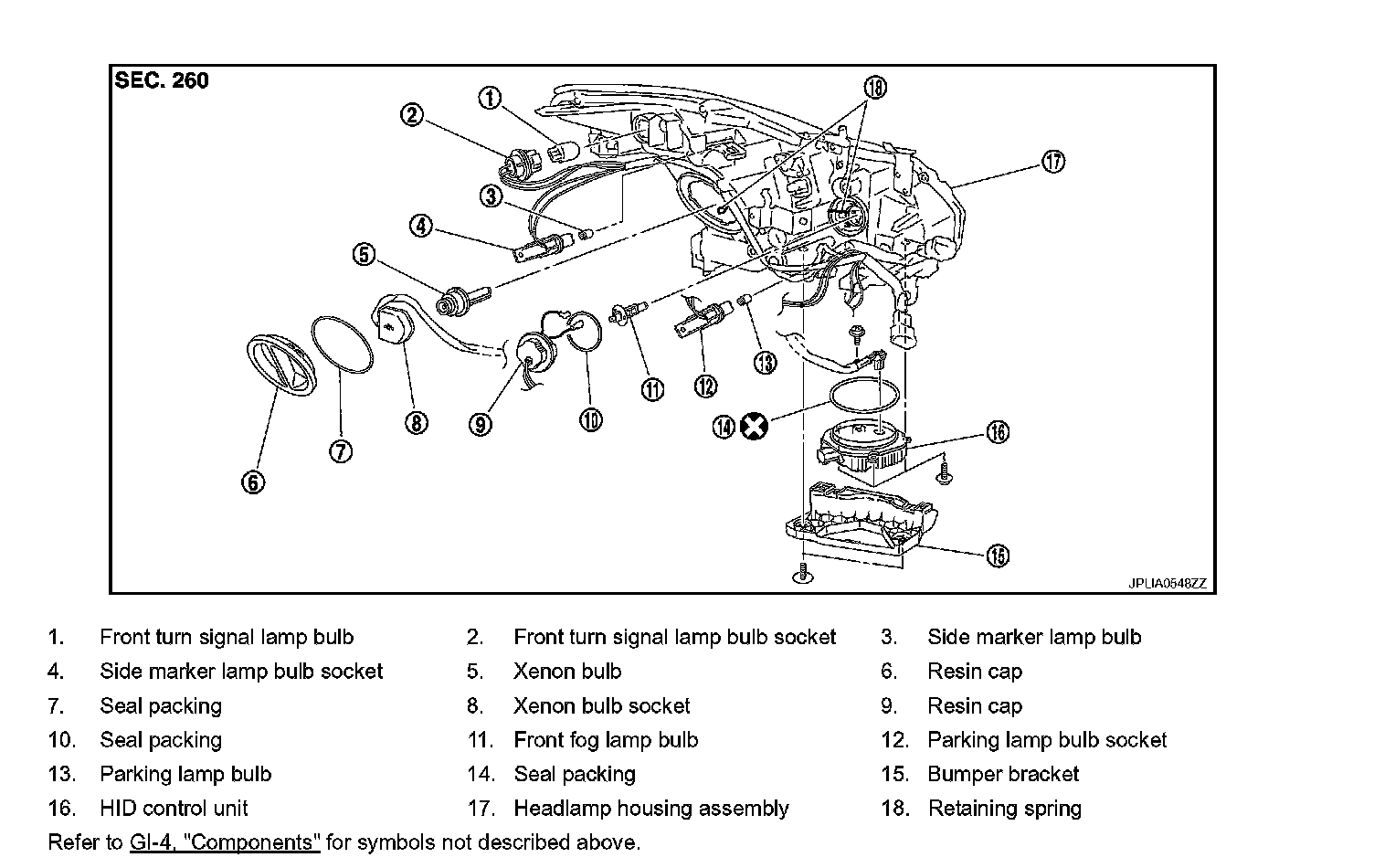

Without AFS

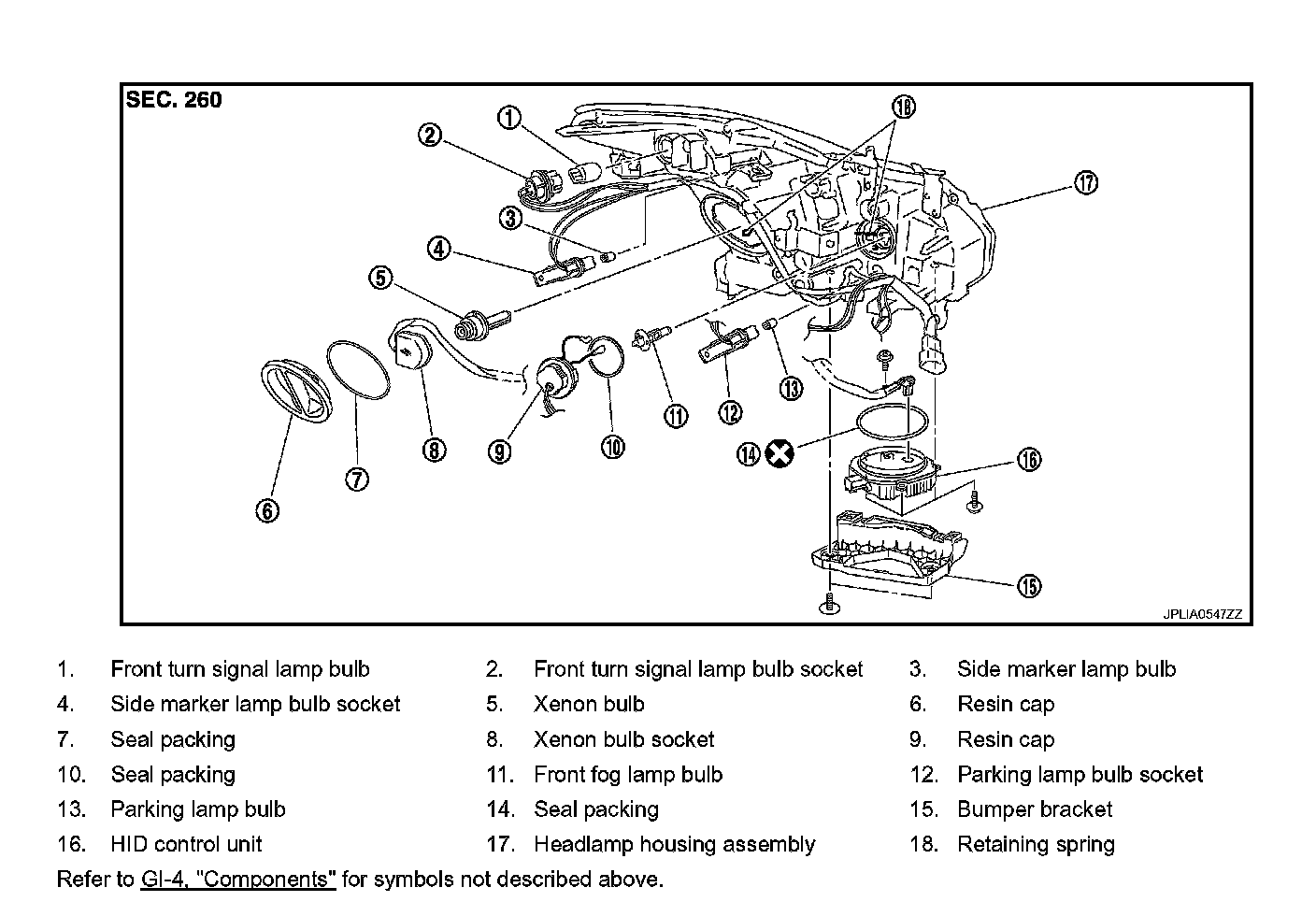

With AFS
