Foot Position Setting Trimmer

INSPECTION AND ADJUSTMENT


Foot Position Setting Trimmer


DESCRIPTION
Wind distribution ratio in FOOT mode can be set.

Operating procedures for this trimmer are as per the following:
1. Begin self-diagnosis STEP-5 mode.
2. Press fan (UP: +) switch*1 (turn fan control dial clockwise*2) to set system in auxiliary mode.

NOTE:
*1: With left and right ventilation temperature separately system.
*2: Without left and right ventilation temperature separately system.

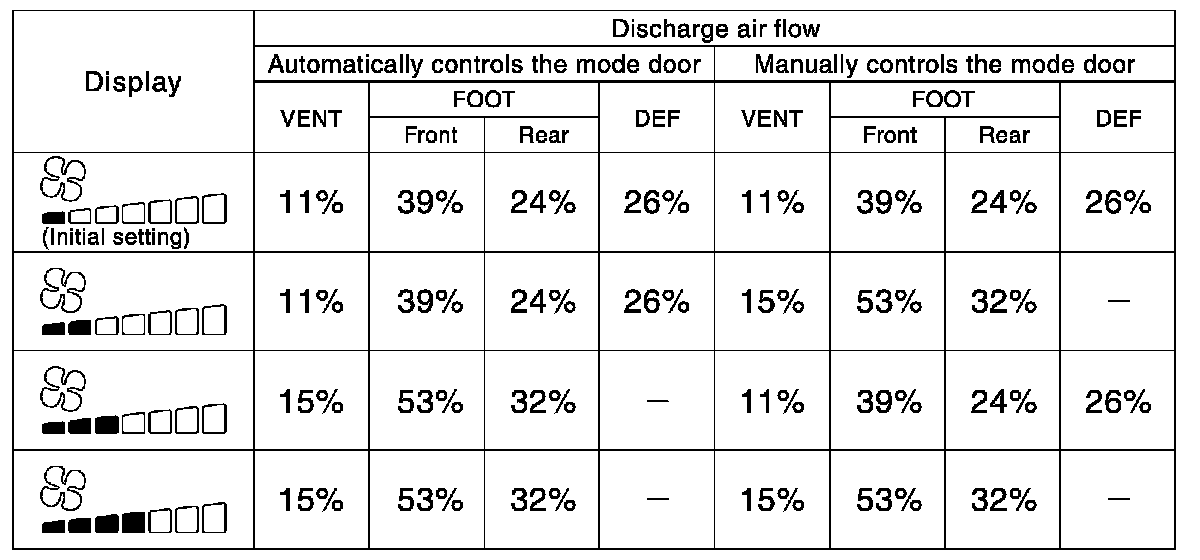

3. Press mode switch as desired.






NOTE:
When battery cable is disconnected or battery voltage is below 10 V, trimmer operation is canceled. Air distribution ratio set becomes that of initial condition.
