Component Description




MODE DOOR MOTOR


Description


COMPONENT DESCRIPTION

Mode Door Motor

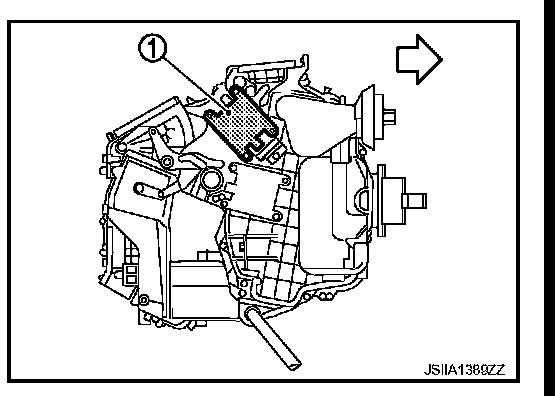

The mode door motor (1) is attached to the heater and cooling unit assembly. It rotates so that air is discharged from the outlet set by the unified meter and A/C amp. Motor rotation is conveyed to a link which activates the mode door.
