Diagnosis Procedure




INTAKE SENSOR


Diagnosis Procedure

1.CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND
1. Disconnect intake sensor connector.
2. Turn ignition switch ON.

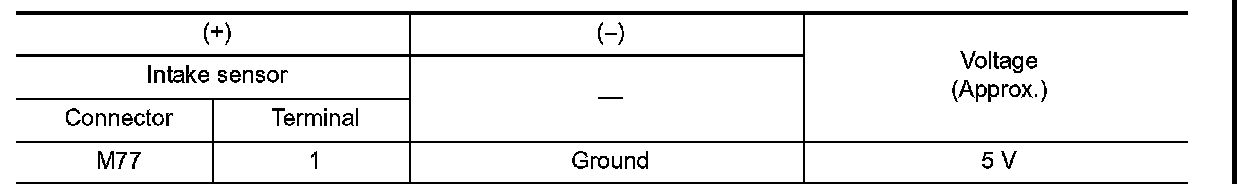

3. Check voltage between intake sensor harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.

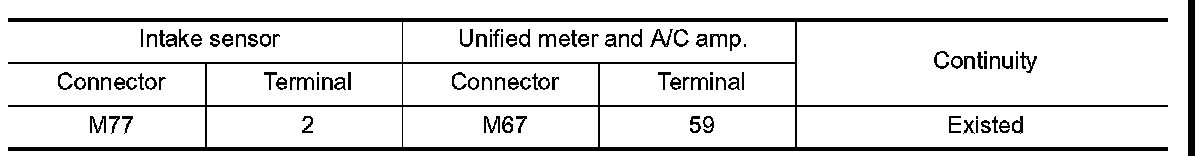

3. Check continuity between intake sensor harness connector and unified meter and A/C amp. harness connector.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair harness or connector.
3.CHECK INTAKE SENSOR
Check intake sensor.
Is the inspection result normal?
YES - Replace unified meter and A/C amp.
NO - Replace intake sensor.
4.CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.

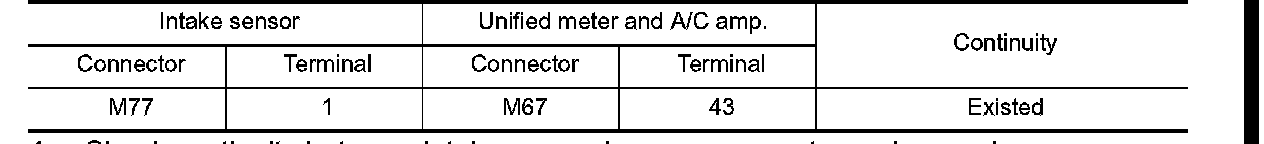

3. Check continuity between intake sensor harness connector and unified meter and A/C amp. harness connector.

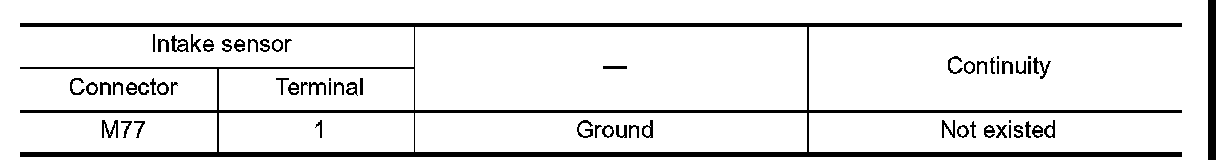

4. Check continuity between intake sensor harness connector and ground.





Is the inspection result normal?
YES - Replace unified meter and A/C amp.
NO - Repair harness or connector.
