Component Description




INTAKE SENSOR


Description


COMPONENT DESCRIPTION

Intake Sensor

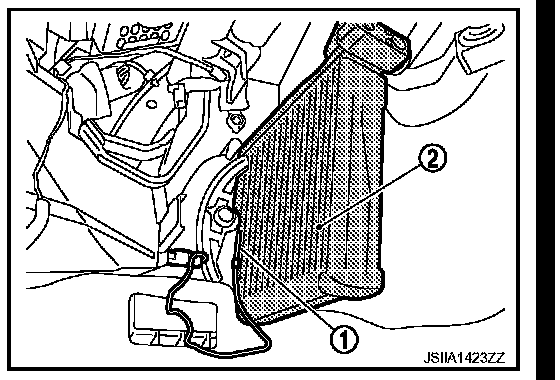

The intake sensor (1) is located on the evaporator. It converts air temperature after it passes through the evaporator (2) into a resistance value which is then input to the unified meter and A/C amp.






Intake Sensor Circuit
