Component Description




INTAKE DOOR MOTOR


Description


COMPONENT DESCRIPTION

Intake Door Motor

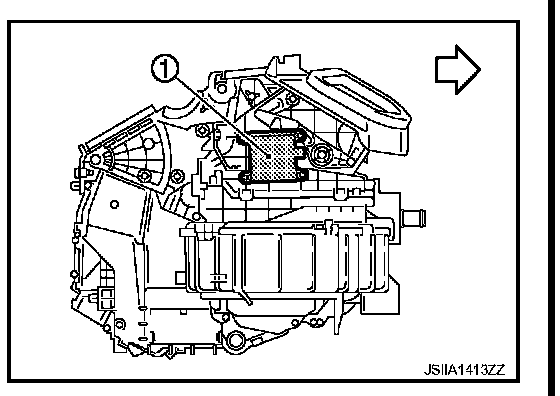

The intake door motor (1) is attached to the blower unit. It rotates so that air is drawn from inlets set by the unified meter and A/C amp.





Motor rotation is conveyed to a lever which activates the intake door.
