Diagnosis Procedure

IN-VEHICLE SENSOR


Diagnosis Procedure

1.CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND
1. Disconnect in-vehicle sensor connector.
2. Turn ignition switch ON.

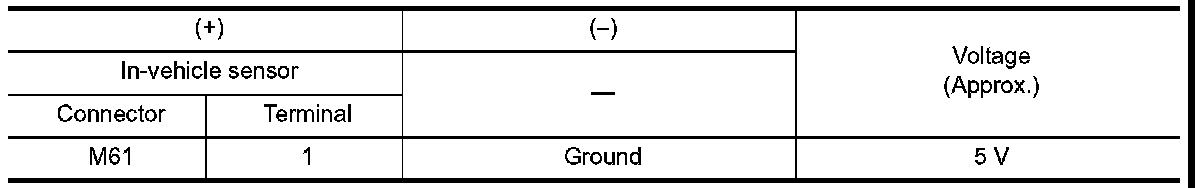

3. Check voltage between in-vehicle sensor harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - GO TO 4.
2.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.

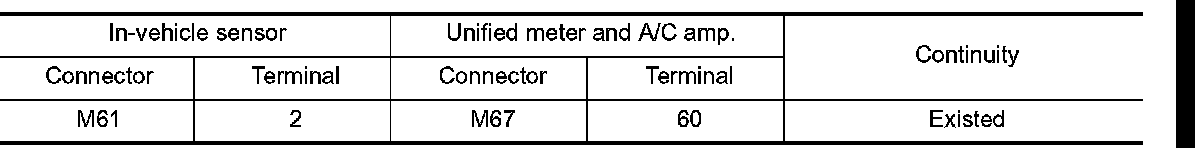

3. Check continuity between in-vehicle sensor harness connector and unified meter and A/C amp. harness connector.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair harness or connector.
3.CHECK IN-VEHICLE SENSOR
Check in-vehicle sensor.
Is the inspection result normal?
YES - Replace unified meter and A/C amp.
NO - Replace in-vehicle sensor.
4.CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect unified meter and A/C amp. connector.
3. Check continuity between in-vehicle sensor harness connector and unified meter and A/C amp. harness connector.

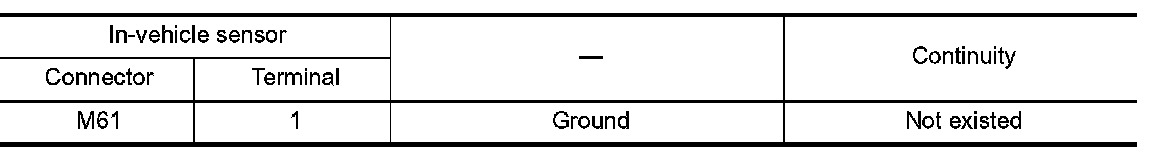

4. Check continuity between in-vehicle sensor harness connector and ground.





Is the inspection result normal?
YES - Replace unified meter and A/C amp.
NO - Repair harness or connector.
