Component Description

IN-VEHICLE SENSOR


Description


COMPONENT DESCRIPTION

In-vehicle Sensor

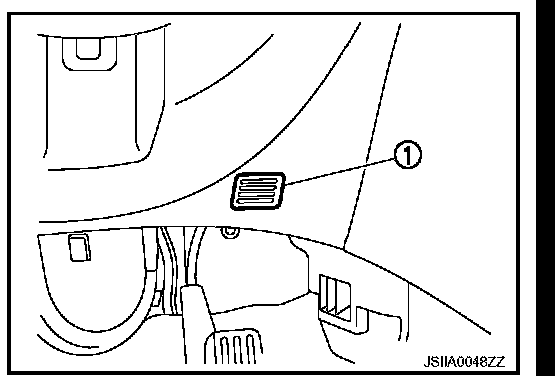

The in-vehicle sensor (1) is located on instrument driver lower panel.





It converts variations in compartment air temperature drawn from the aspirator into a resistance value. It is then input into the unified meter and A/C amp.

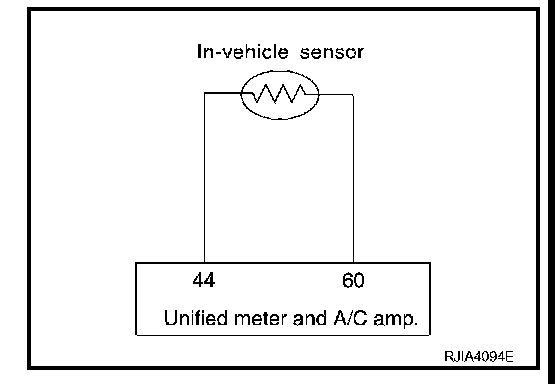

In-vehicle Sensor Circuit











Aspirator
The aspirator (1) is located on driver's side of heater and cooling unit assembly. It produces vacuum pressure due to air discharged from the heater and cooling unit assembly, continuously taking compartment air in the aspirator.
