Component Description

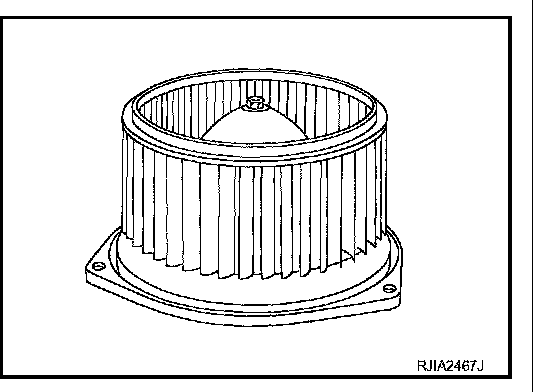

BLOWER MOTOR


Description


COMPONENT DESCRIPTION

Brush-less Motor
The blower motor utilizes a brush-less motor with a rotating magnet.





Quietness is improved over previous motors where the brush was the point of contact and the coil rotated.

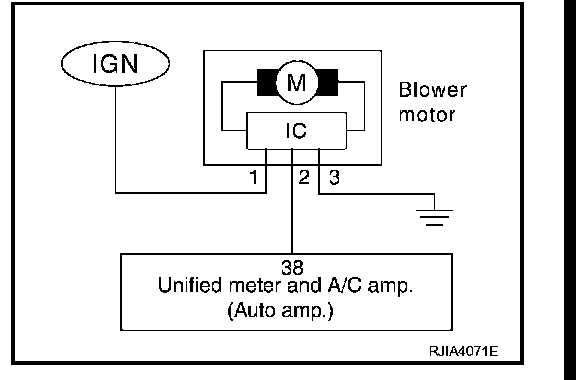

Blower Motor Circuit
