Connecting Rod: Specifications

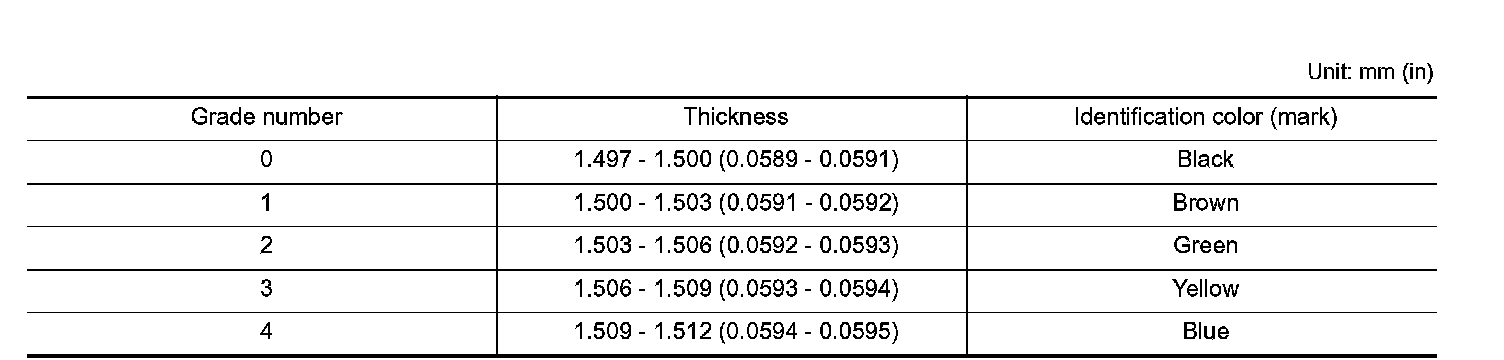

CONNECTING ROD BEARING

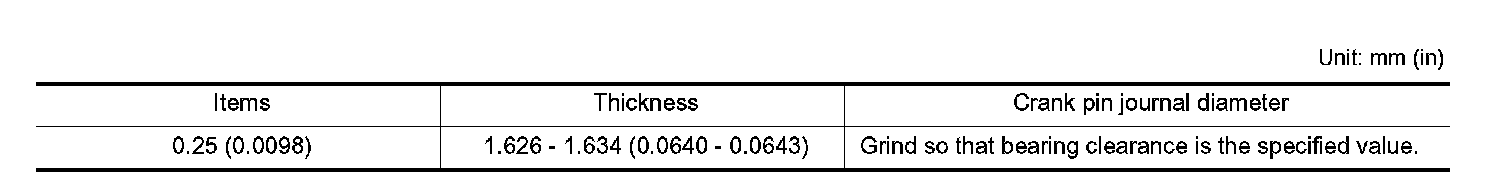

UNDERSIZE

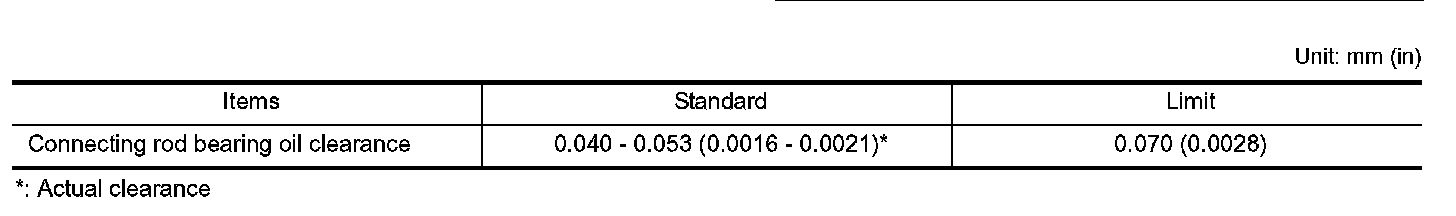

CONNECTING ROD BEARING OIL CLEARANCE





Connecting rod bolts

Tighten 28.4 Nm (2.9 kg-m, 21 ft-lb)

Loosen 0 Nm (0 kg-m, 0 ft-lb)

Tighten 24.5 Nm (2.5 kg-m, 18 ft-lb)

Turn bolts 90°
