STC - Electronically Controlled Power Steering System





POWER STEERING CONTROL UNIT

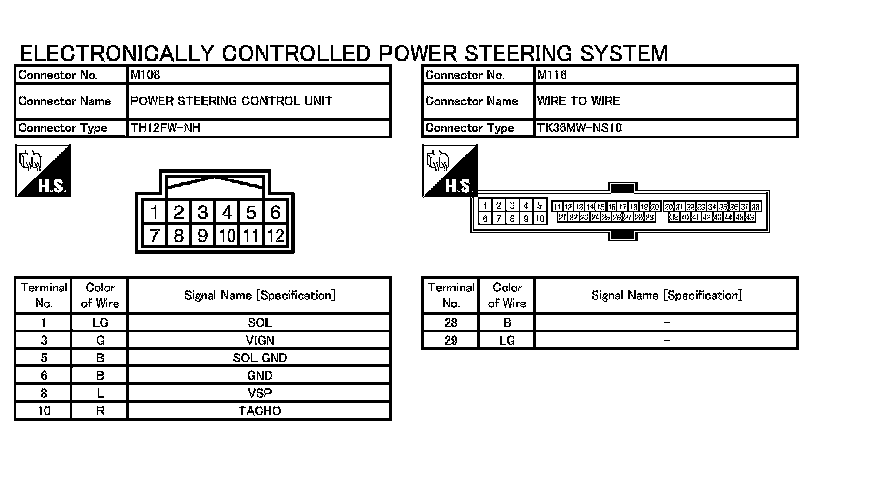

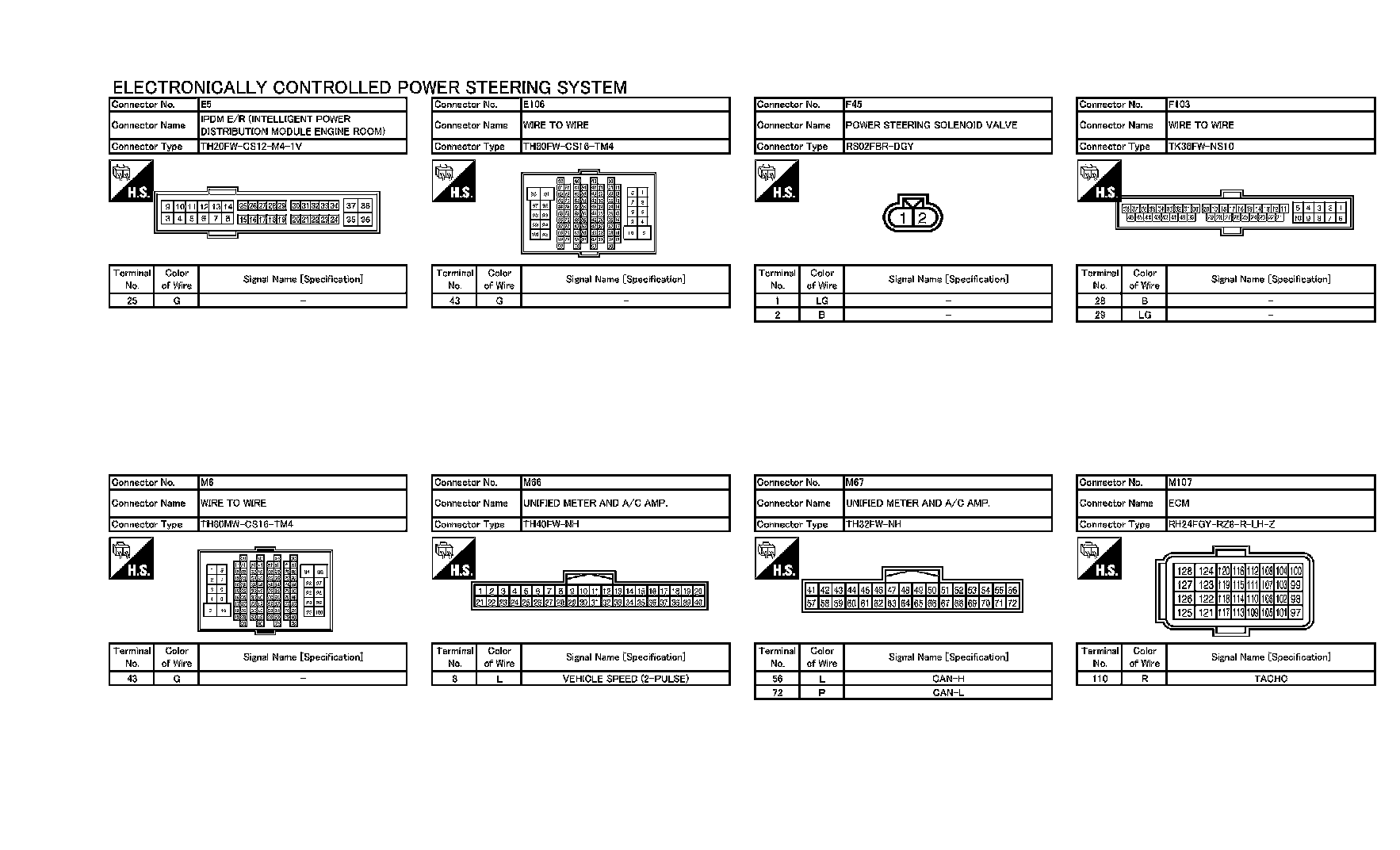

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -
