Component Function Check





VDC OFF SWITCH


Component Function Check

1.CHECK VDC OFF SWITCH OPERATION

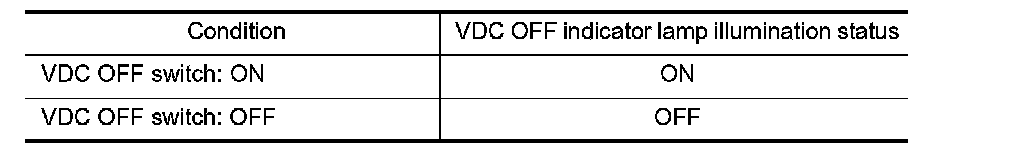

Turn ON/OFF the VDC OFF switch and check that the VDC OFF indicator lamp in the combination meter turns
ON/OFF correctly.





Is the inspection result normal?
YES - INSPECTION END
NO - Go to diagnosis procedure. Refer to Diagnosis Procedure.
