Diagnosis Procedure

VDC OFF INDICATOR LAMP

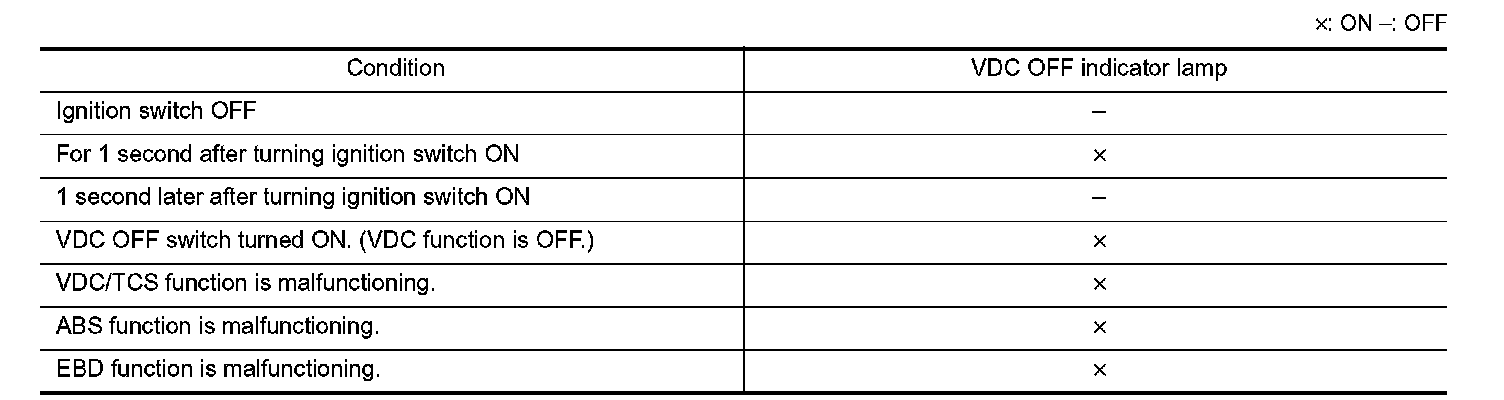

Description









VDC OFF INDICATOR LAMP


Diagnosis Procedure

1.CHECK VDC OFF SWITCH
Check that the VDC OFF indicator lamp in the combination meter turns ON/OFF correctly when operating the
VDC OFF switch.
Is the inspection result normal?
YES - GO TO 2.
NO - Check VDC OFF switch. Refer to Diagnosis Procedure.
2.CHECK SELF-DIAGNOSIS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is the inspection result normal?
YES - GO TO 3.
NO - Check items displayed by self-diagnosis.
3.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. Refer to Diagnosis System (Meter).
Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit).
NO - Repair or replace combination meter.
