Driver Seat Control Unit (Without Automatic Drive Positioner)





DRIVER SEAT CONTROL UNIT (WITHOUT AUTOMATIC DRIVE POSITIONER)


Reference Value

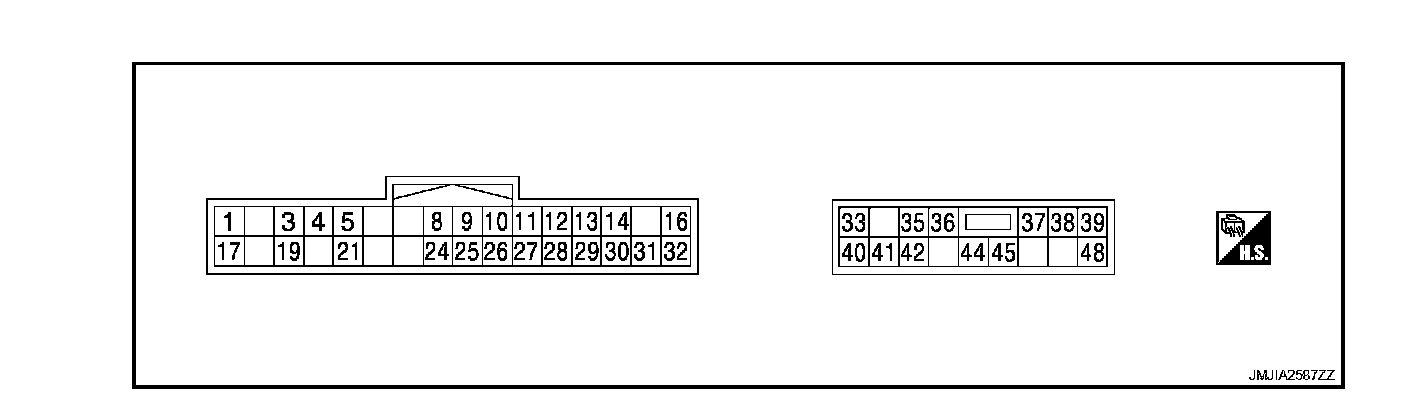

TERMINAL LAYOUT

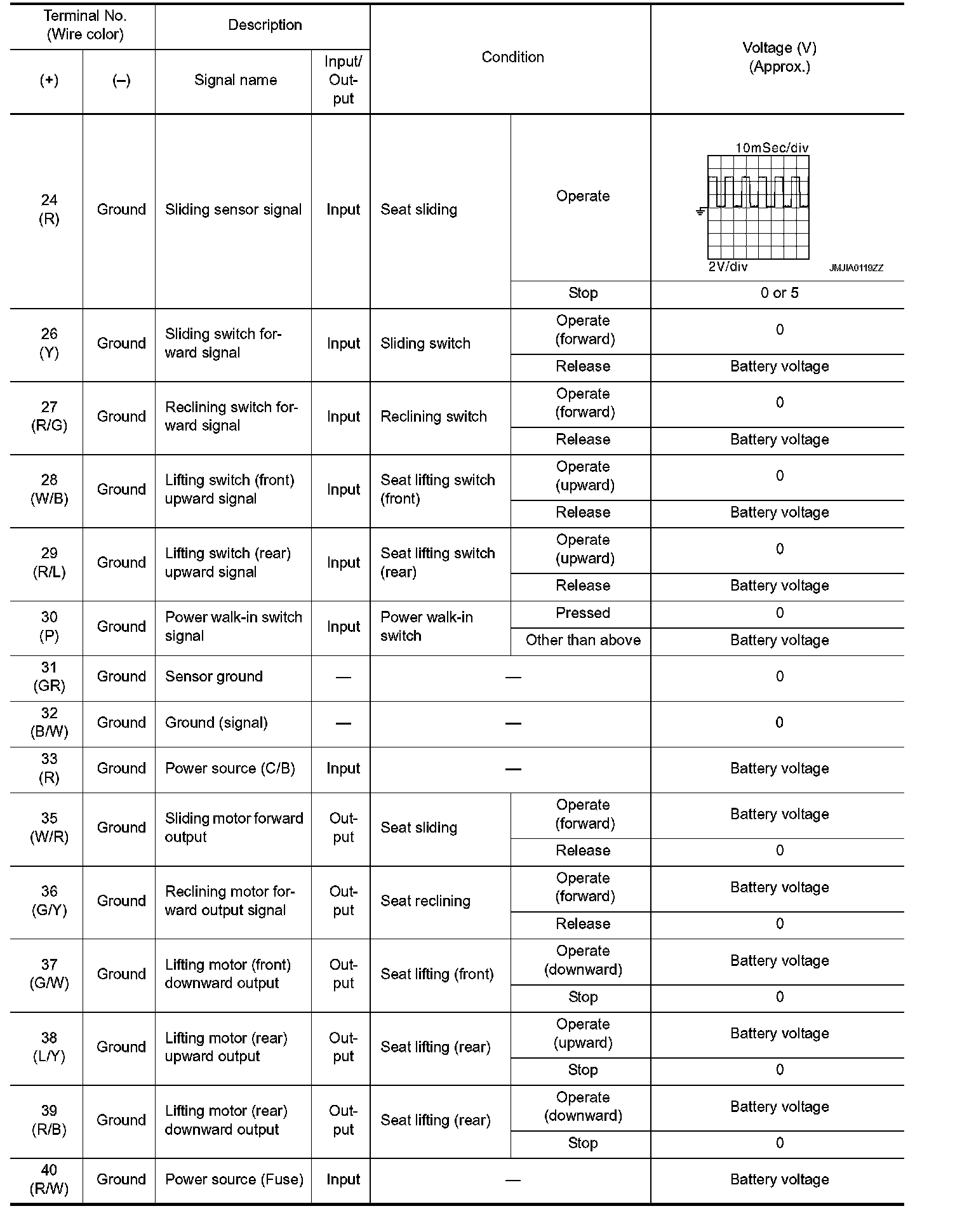

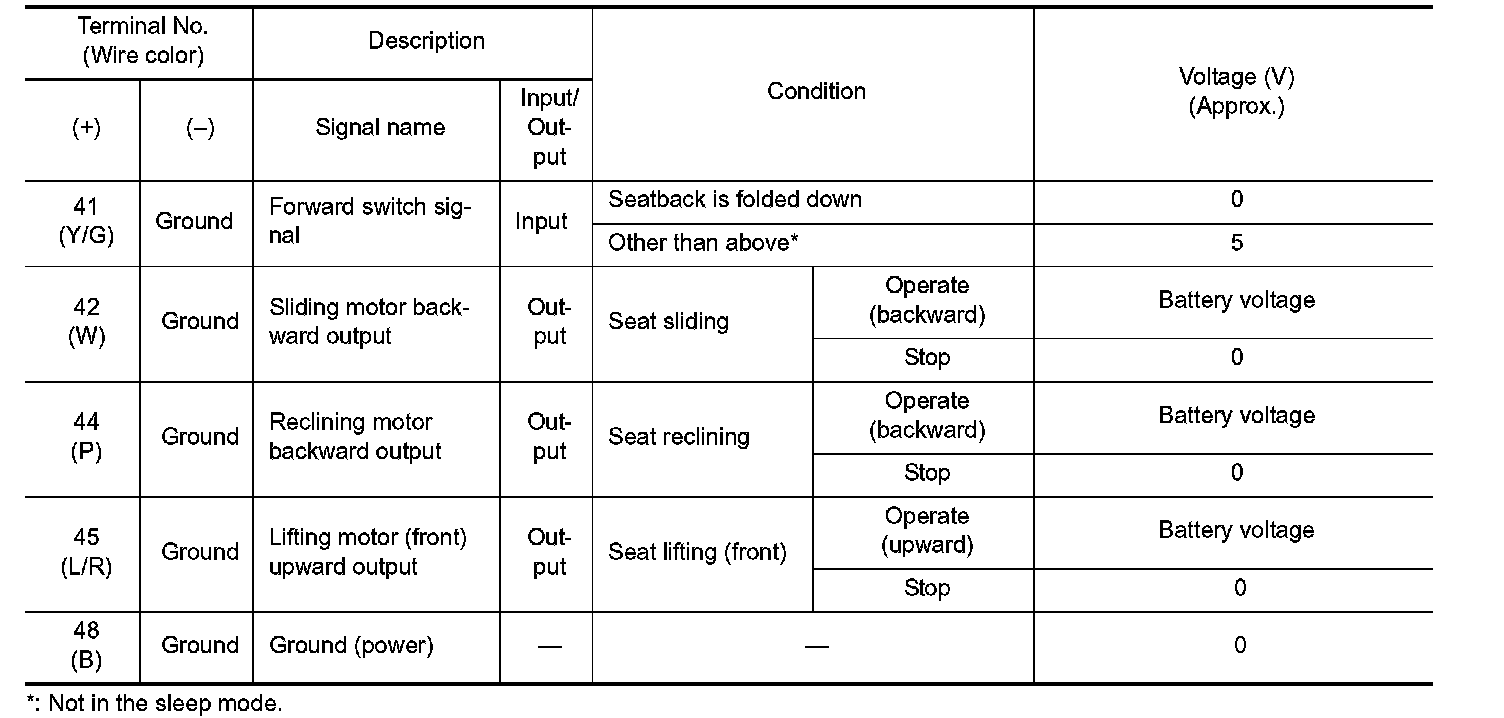

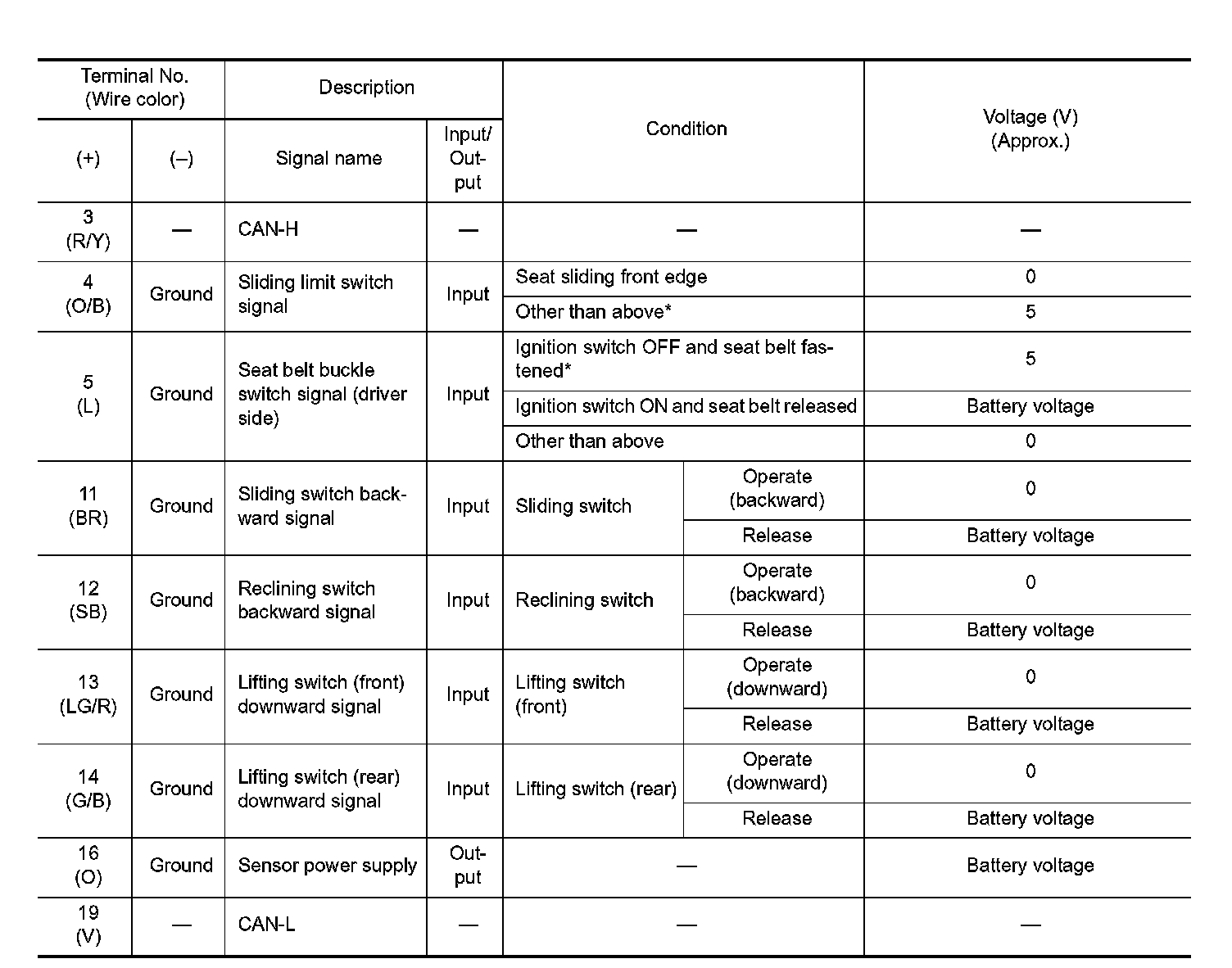

PHYSICAL VALUES
