Component Inspection

LIFTING MOTOR (REAR)


PASSENGER SIDE : Component Inspection

1.CHECK LIFTING MOTOR (REAR) -1
Visually check the lifting motor (rear) for foreign objects, and check that the lifting motor (rear) is not broken.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace seat cushion frame (lifting motor).
2.CHECK LIFTING MOTOR (REAR) -2
1. Turn ignition switch OFF.
2. Disconnect lifting motor (rear) connector.

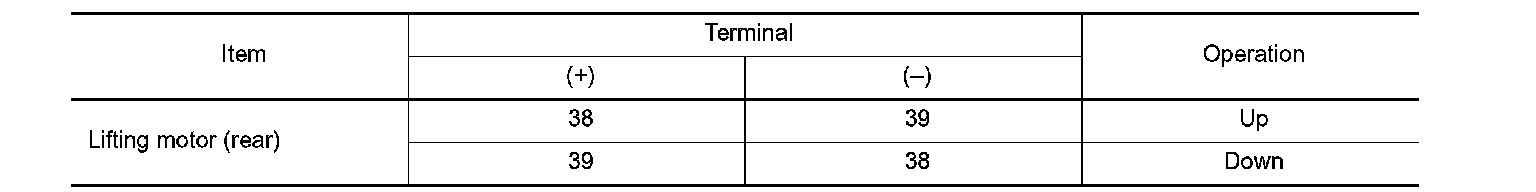

3. Supply lifting motor (rear) terminals with battery voltage and check operation.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace lifting motor (rear). Refer to Exploded View.
