Disassembly and Assembly

REAR SEAT


Disassembly and Assembly


SEATBACK

Disassembly

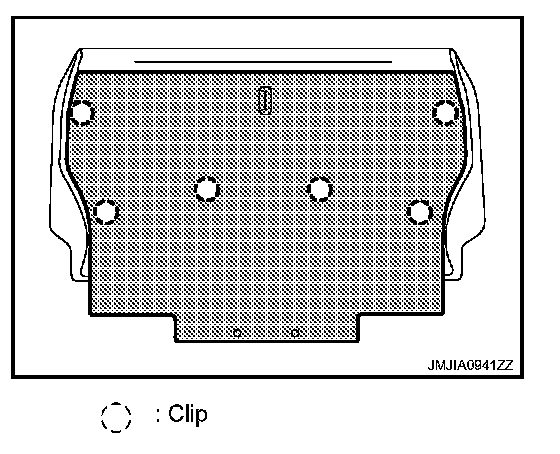

1. Remove the seatback board.





Remove the clips.

2. Remove the seatback trim and seatback pad.
- Remove the hog rings, and remove the seatback retainer.
- Remove the hog rings to separate the seatback trim and seatback pad.
3. Remove the seatback lock cable.
- Remove the mounting bolt and cable clamp.
- Remove the seatback lock cable from the seatback frame.
4. Remove the seatback lock assembly.
- Remove the seatback lock assembly mounting bolt.
- Remove the seatback lock assembly from the seatback frame.

Assembly
Assemble in the reverse order of disassembly.

CAUTION:
Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with the seatback frame.

SEAT CUSHION

Disassembly
1. Remove the center tray.

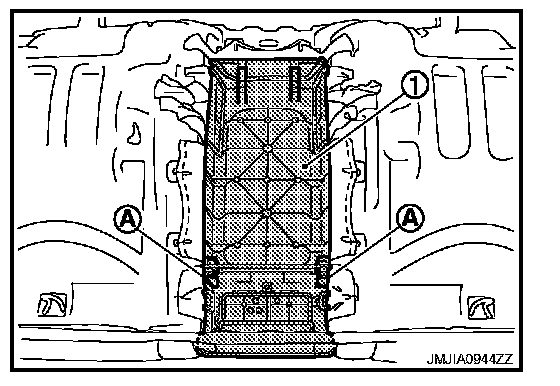

- Remove the clips (A) from the seat cushion backside, and then remove pawls when pulling the center tray (1).
- Remove the center tray from the seat cushion assembly.
2. Remove the seat cushion trim and seat cushion pad.
Remove the hog rings to separate the seat cushion trim and seat cushion pad.

Assembly
Assemble in the reverse order of disassembly.

CAUTION:
Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord with the seat cushion pad wire.
