Component Inspection

SLIDING MOTOR


Component Inspection

1.CHECK SLIDING MOTOR-1
Visually check the sliding motor for foreign object, and check that the sliding motor is not broken.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace seat cushion frame (sliding motor).
2.CHECK SLIDING MOTOR-2
1. Turn ignition switch OFF.
2. Disconnect sliding motor connector.

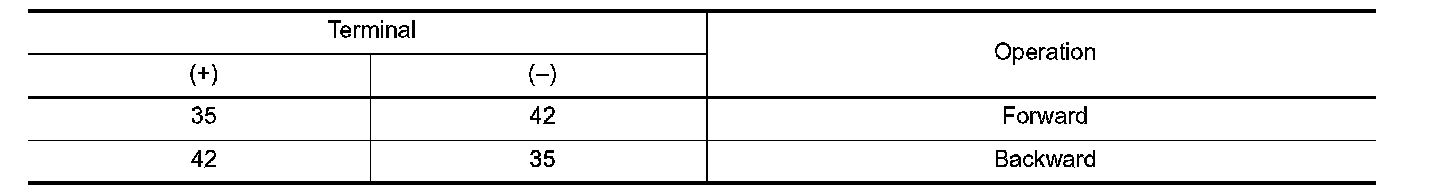

3. Supply sliding motor terminals with battery voltage and check operation.





Is the inspection result normal?
YES - Sliding motor is OK.
NO - Replace sliding motor. (Built in seat slide cushion frame.) Refer to Exploded View.
