Component Inspection

PARKING BRAKE SWITCH


Component Inspection

1.CHECK PARKING BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect parking brake switch connector.

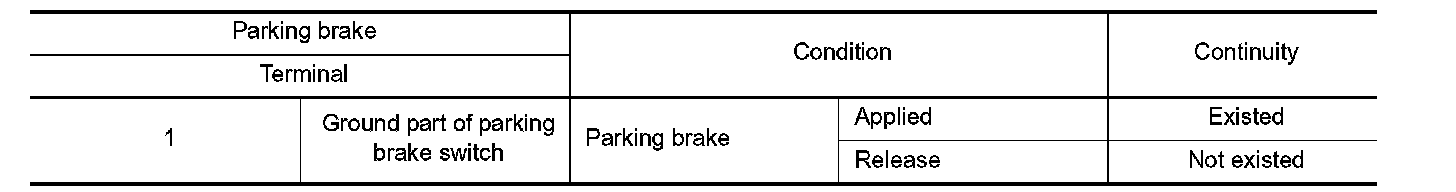

3. Check continuity between parking brake switch terminal and ground part of parking brake switch.





Is the inspection result normal?
YES - INSPECTION END
NO-1 - Adjust or replace parking brake switch (pedal type). Refer to Exploded View.
NO-2 - Adjust or replace parking brake switch (lever type). Refer to Exploded View.
