Component Function Check

PARKING BRAKE SWITCH


Component Function Check

1.CHECK PARKING BRAKE SWITCH INPUT SIGNAL
1. Select "PARK BRAKE SW" in the "Data Monitor" mode using CONSULT-III.

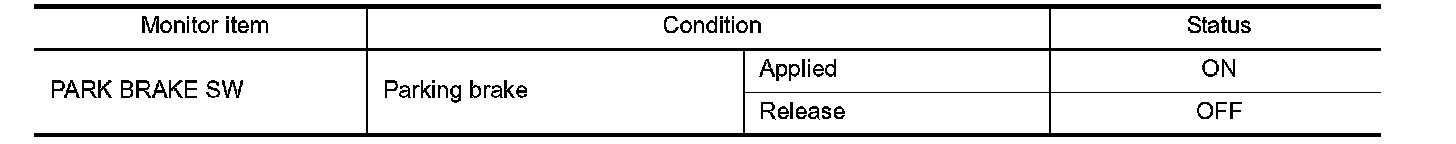

2. Check parking brake switch signal under the following conditions.





Is the indication normal?
YES - INSPECTION END
NO - Perform diagnosis procedure. Refer to Diagnosis Procedure.
