Component Inspection

LIFTING MOTOR (REAR)


Component Inspection

1.CHECK LIFTING MOTOR-1
Visually the lifting motor (rear) for foreign object, and check that the lifting motor (rear) is not broken.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace seat cushion frame (lifting motor).
2.CHECK LIFTING MOTOR-2
1. Turn ignition switch OFF.
2. Disconnect lifting motor connector.

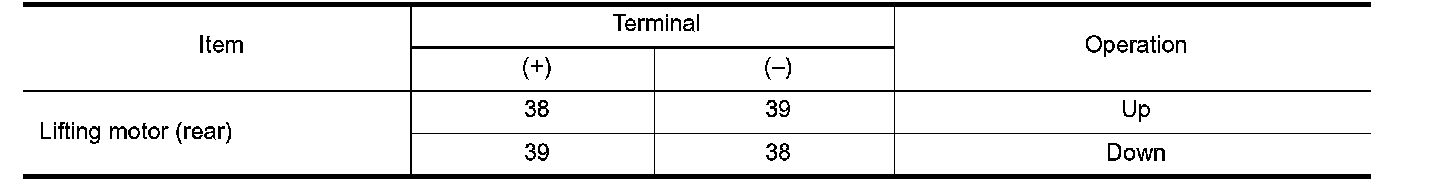

3. Supply lifting motor terminals with battery voltage and check operation.





Is the inspection result normal?
YES - Lifting motor (rear) is OK.
NO - Replace lifting motor (rear). (Built in seat slide cushion frame.) Refer to Exploded View.
