Component Function Check

DOOR SWITCH


Component Function Check

1.CHECK FUNCTION
With CONSULT-III

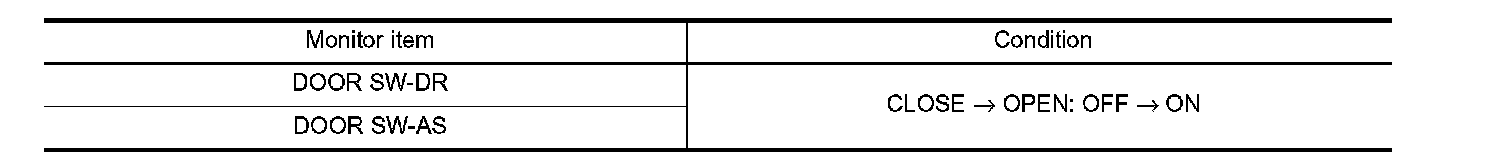

Check door switches ("DOOR SW-DR", "DOOR SW-AS") in Data Monitor" mode with CONSULT-III.





Is the inspection result normal?
YES - Door switch is OK.
NO - Refer to Diagnosis Procedure.
