Component Inspection

RECLINING MOTOR


Component Inspection

1.CHECK RECLINING MOTOR-1
Visually check the reclining motor for foreign object, and check that the reclining motor is not broken.
Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace seatback frame (reclining motor).
2.CHECK RECLINING MOTOR-2
1. Turn ignition switch OFF.
2. Disconnect reclining motor connector.

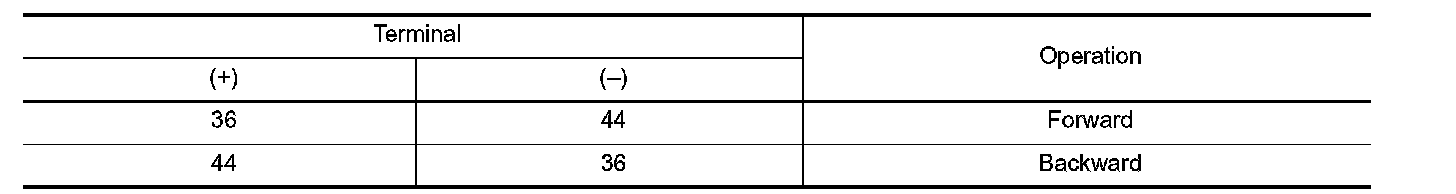

3. Supply reclining motor terminals with battery voltage and check operation.





Is the inspection result normal?
YES - Reclining motor is OK.
NO - Replace reclining motor. (Built in seat slide cushion frame.) Refer to Exploded View.
