Component Function Check

POWER WALK-IN SWITCH


Component Function Check

1.CHECK FUNCTION
1. Select "WALK-IN SW" in the "Data Monitor" mode using CONSULT-III.

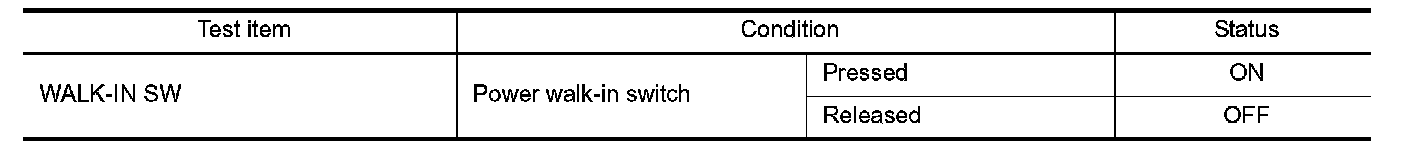

2. Check the power walk-in switch signal under the following condition.





Is the indication normal?
YES - INSPECTION END
NO - Refer to Diagnosis Procedure.
