Component Function Check

KEY WARNING LAMP


Component Function Check

1.CHECK FUNCTION

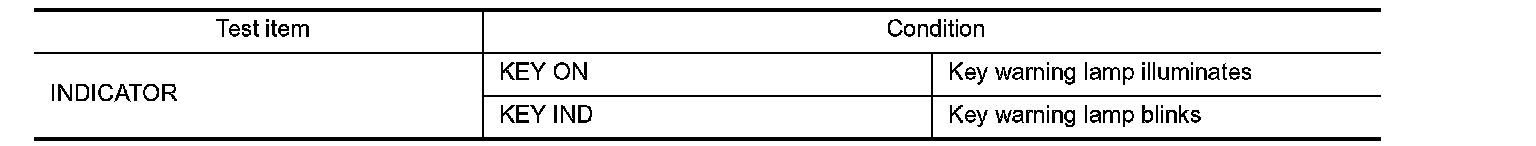

Check the operation with "INDICATOR" in "Active Test" mode using CONSULT-III.





Is the inspection result normal?
YES - Key warning lamp in combination meter is normal.
NO - Refer to Diagnosis Procedure.
