Diagnosis Procedure

TRUNK LID OPENER ACTUATOR


Description

Performs trunk lid open with signal from BCM.



TRUNK LID OPENER ACTUATOR


Diagnosis Procedure

1.CHECK TRUNK LID OPENER ACTUATOR INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect trunk lid lock assembly connector.

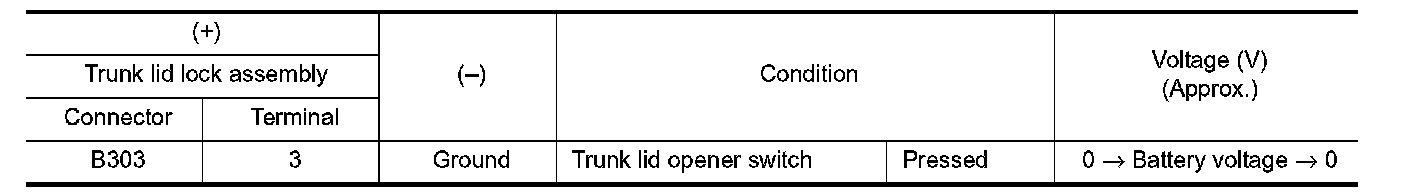

3. Check voltage between trunk lid lock assembly harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK TRUNK LID OPENER ACTUATOR CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector and trunk lid lock assembly harness connector.

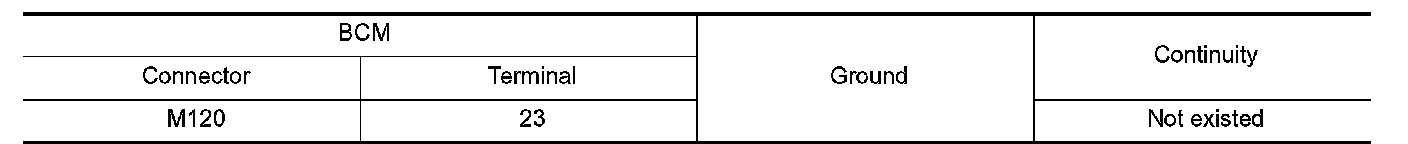

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Refer to Removal and Installation.
NO - Repair or replace harness.
3.CHECK TRUNK LID OPENER ACTUATOR GROUND CIRCUIT

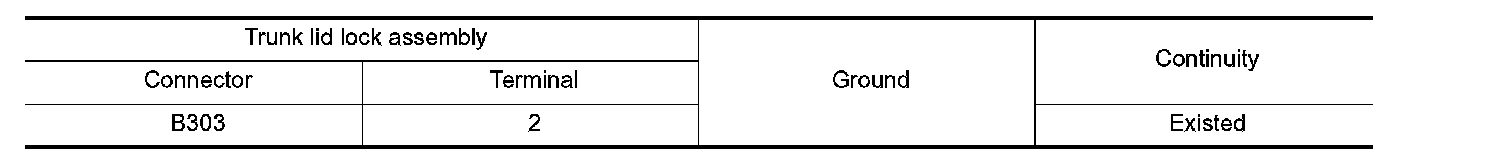

Check continuity between trunk lid lock assembly harness connector and ground.





Is the inspection result normal?
YES - Replace trunk lid lock assembly. Refer to Removal And Installation.
NO - Repair or replace harness.
