Automatic Door Locks

U1010 CONTROL UNIT (CAN)





DTC Logic

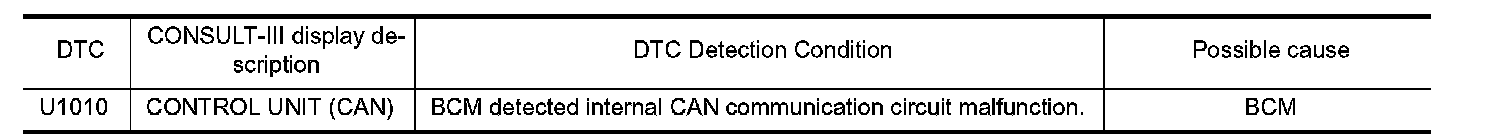

DTC DETECTION LOGIC









Diagnosis Procedure
1.REPLACE BCM
When DTC [U1010] is detected, replace BCM.
- Replace BCM. Refer to Removal and Installation




Special Repair Requirement
1.REQUIRED WORK WHEN REPLACING BCM
Initialize control unit. Refer to CONSULT-III operation manual NATS-IVIS/NVIS.
- INSPECTION END
