WT





BCM (BODY CONTROL MODULE)

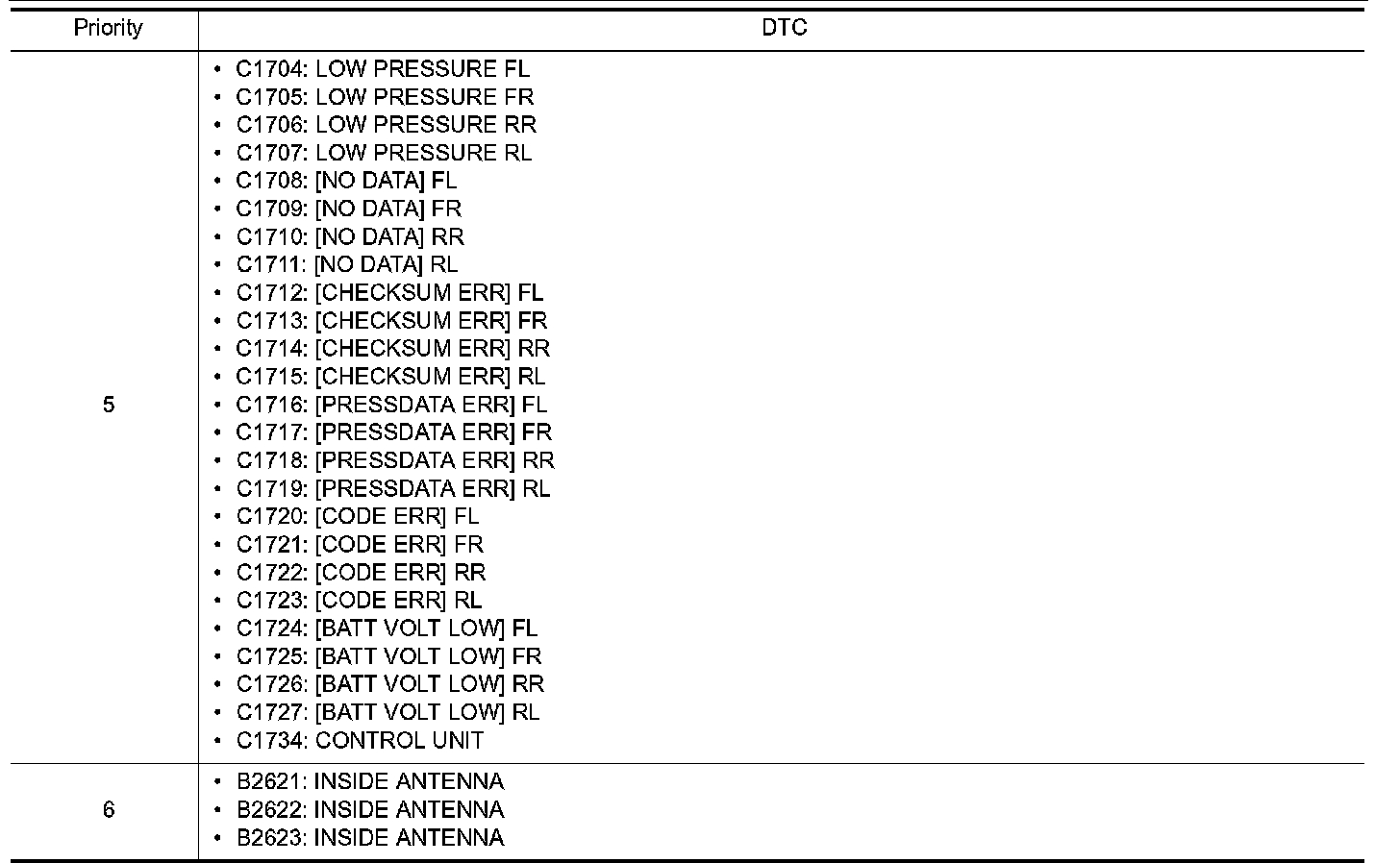

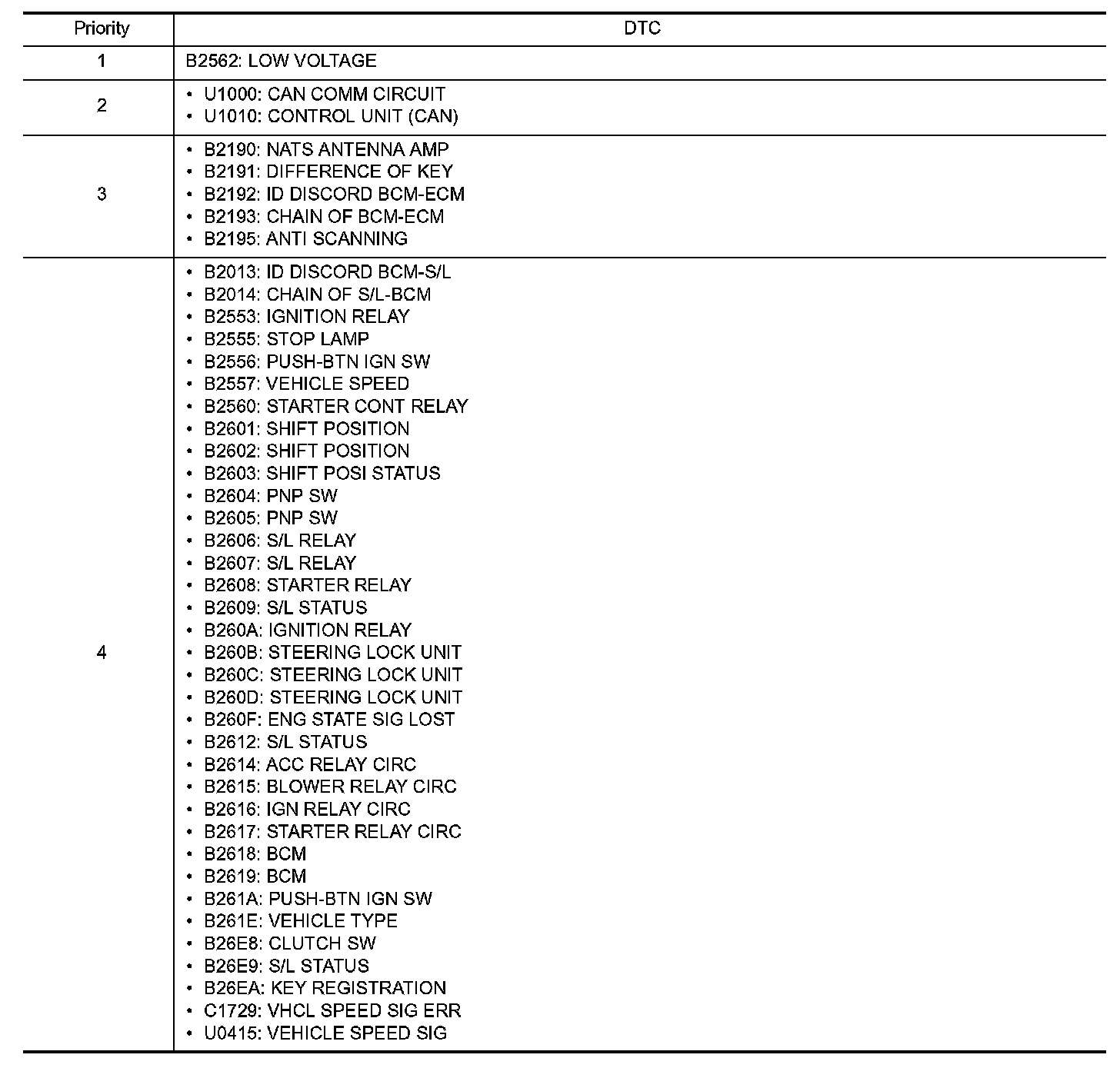

DTC Inspection Priority Chart

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority chart.
