P0725

P0725 ENGINE SPEED SIGNAL





Description
The engine speed signal is transmitted from the ECM to the TCM via CAN communication line.




DTC Logic

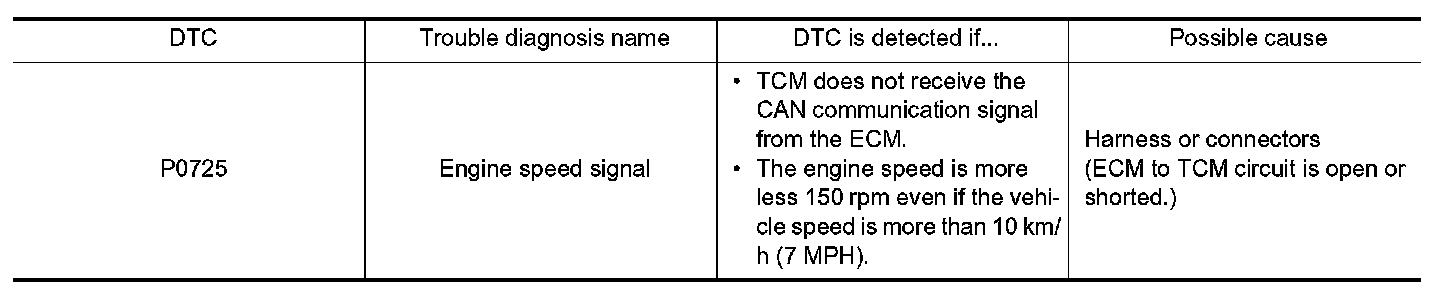

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

CAUTION:
Always drive vehicle at a safe speed.
1.PRECONDITIONING
If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.
2.CHECK DTC DETECTION
With CONSULT-III
1. Start the engine.
2. Select "SLCT LVR POSI" and "VHCL/S SE-A/T" in "Data Monitor" in "TRANSMISSION".
3. Drive vehicle and maintain the following conditions for 5 seconds or more.

SLCT LVR POSI : D
VHCL/S SE-A/T : More than 10 km/h (7 MPH)

4. Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT-III".
Is "P0725" detected?
YES - Go to P0725.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK DTC OF ECM
With CONSULT-III
1. Turn ignition switch ON.
2. Perform "Self Diagnostic Results" in "ENGINE".
Is any DTC detected?
YES - Check DTC detected item. Refer to Testing and Inspection.
NO - GO TO 2.
2.CHECK DTC OF TCM
With CONSULT-III
Perform "Self Diagnostic Results" in "TRANSMISSION".
Is any DTC detected?
YES - Check DTC detected item. Refer to Testing and Inspection.
NO - GO TO 3.
3.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
Is the inspection result normal?
YES - Replace A/T assembly. Refer to (2WD), Exploded View (AWD).
NO - Repair or replace damaged parts.
