P0717

P0717 TURBINE REVOLUTION SENSOR





Description
The turbine revolution sensor detects input shaft rpm (revolutions per minute). It is located on the input side of the A/T. Monitors revolution of sensor 1 and sensor 2 for non-standard conditions.




DTC Logic

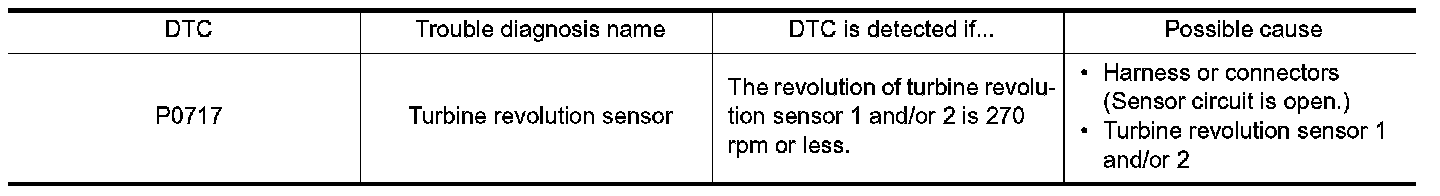

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

CAUTION:
Always drive vehicle at a safe speed.
1.PRECONDITIONING
If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.
2.CHECK DTC DETECTION
With CONSULT-III
1. Start the engine.
2. Select "SLCT LVR POSI", "GEAR", "VHCL/S SE-A/T", "W/O THL POS" and "ENGINE SPEED" in "Data
Monitor" in "TRANSMISSION".
3. Drive vehicle and maintain the following conditions for 5 seconds or more.

CAUTION:
Keep the same gear position.

NOTE:
Driving the vehicle uphill (increased engine load) will help maintain the driving conditions required for this test.

SLCT LVR POSI : D
GEAR : 2nd, 3rd, 4th, 5th or 6th
VHCL/S SE-A/T : More than 40 km/h (25 MPH)
W/O THL POS : ON
ENGINE SPEED : More than 1,500 rpm

4. Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT-III".
Is "P0717" detected?
YES - Go to P0717.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
Is the inspection result normal?
YES - Replace A/T assembly.
