C1716, C1717, C1718, C1719 TRANSMITTER





Description
The transmitter integrated with a valve is installed on a wheel, and transmits a detected air pressure signal by radio wave.




DTC Logic

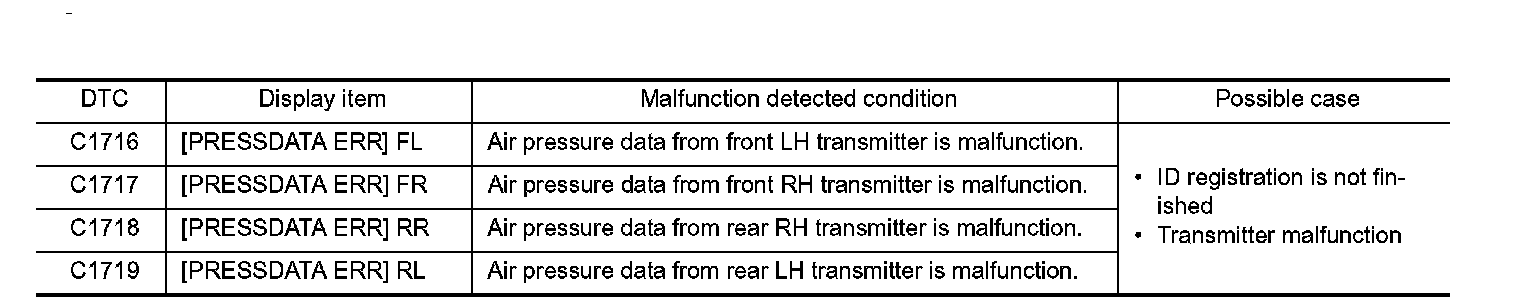

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC REPRODUCTION PROCEDURE
With CONSULT-III
1. Drive at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.
2. Perform BCM self- diagnosis.
Is DTC "C1716", "C1717", "C1718", "C1719" detected?
YES - Perform trouble diagnosis. Refer to C1716.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK TIRE PRESSURE
With CONSULT-III
1. Adjust tire pressure to specified value. Refer to Specifications.
2. Perform the ID registration of all transmitters. Refer to Special Repair Requirement.
3. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
4. Check the all tire pressure with CONSULT-III "DATA MONITOR" within 15 minutes after stopped vehicle.





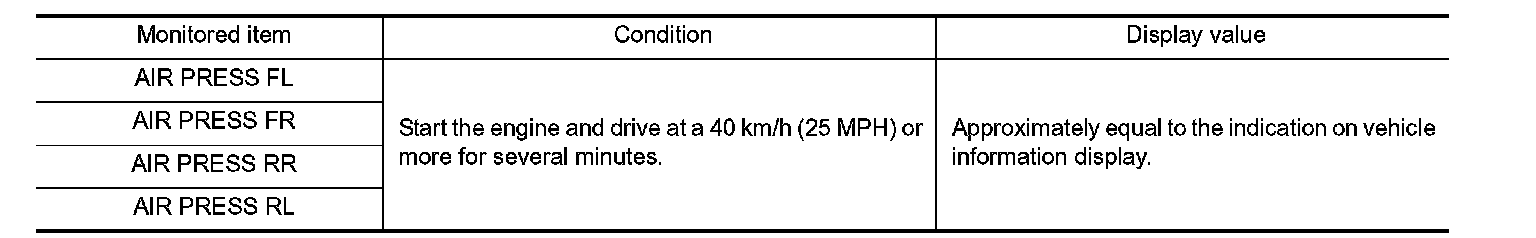

Is tire pressure indicated as 438.60 kPa (4.47kg/cm2, 63.60 psi) on the "DATA MONITOR" screen?
YES - Replace malfunctioning transmitter.
NO - GO TO 2.
2.CHECK TIRE PRESSURE MONITORING SYSTEM
With CONSULT-III
1. Perform the ID registration of all transmitters. Refer to Special Repair Requirement.
2. Drive at a speed of 40 km/h (25 MPH) or more for 10 minutes.
3. Check the all tire pressures with CONSULT-III "DATA MONITOR" within 5 minutes.





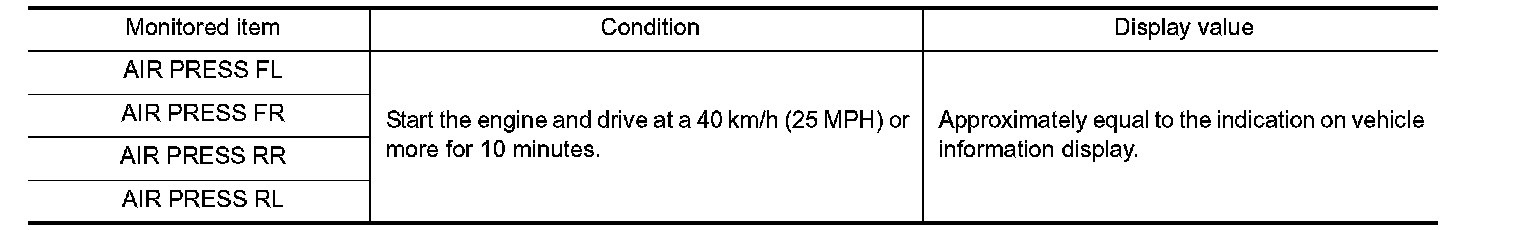

Is the inspection result normal?
YES - INSPECTION END
NO - Perform the self-diagnosis, inspect detected malfunction. Refer to Air Pressure Monitor




Component Inspection
1.CHECK TRANSMITTER
With CONSULT-III
1. Adjust tire pressure to specified value. Refer to Specifications.
2. Perform ID registration of all transmitters. Refer to Special Repair Requirement.
3. Drive at a speed of 40 km/h (25 MPH) or more for several minutes without stopping.
4. Check the all tire pressure with CONSULT-III "DATA MONITOR" within 15 minutes after stopped vehicle.





Is tire pressure indicated as 438.60 kPa (4.47 kg/cm2, 63.60 psi) on the "DATA MONITOR" screen?
YES - Replace malfunctioning transmitter.
NO - INSPECTION END




Special Repair Requirement
1.CHECK TIRE AIR PRESSURE
Check all tire air pressures. Refer to Specifications.
Does all tire pressure data meet the specification?
YES - GO TO 2.
NO - Inspect or repair the tires or wheels and adjust the tire pressure to the specification.
2.PERFORM ID REGISTRATION
Perform ID registration. Refer to Special Repair Requirement.
- END
