C1671

C1671 ACTUATOR ADJUSTMENT NOT PERFORMED





Description
- Memorize the neutral position of 4WAS front actuator in 4WAS front control unit.




DTC Logic

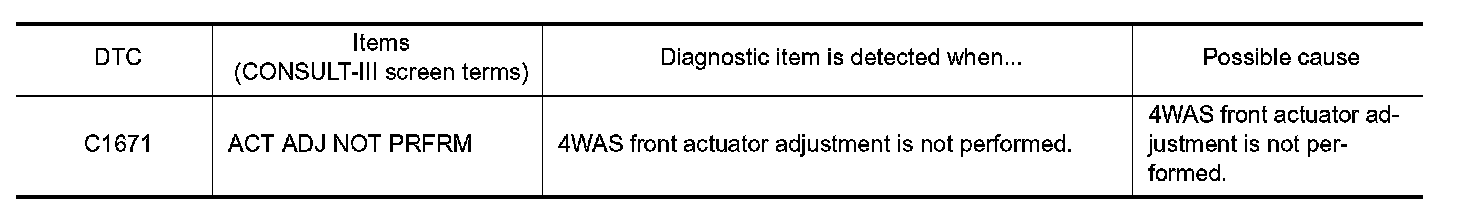

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.RECHECK DTC
With CONSULT-III
1. Turn the ignition switch from OFF to ON.
2. Perform 4WAS front control unit self-diagnosis.
Is DTC "C1671" detected?
YES - Proceed to diagnosis procedure. Refer to C1671.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS (4WAS FRONT CONTROL UNIT)
With CONSULT-III
Perform 4WAS front control unit self-diagnosis.
Is any DTC other than "C1671" detected?
YES - Check the error system.
NO - GO TO 2.
2. 4WAS FRONT ACTUATOR ADJUSTMENT
With CONSULT-III
1. Perform 4WAS front actuator adjustment. Refer to Special Repair Requirement (Pattern 2) Special Repair Requirement (Pattern 3), "4WAS FRONT ACTUATOR NEUTRAL
2. Perform 4WAS front control unit self-diagnosis.
Is any DTC other than "C1671" detected?
YES - Check the error system.
NO - GO TO 3.
3.PERFORM SELF-DIAGNOSIS (4WAS FRONT CONTROL UNIT)
With CONSULT-III
Perform 4WAS front control unit self-diagnosis.
Is DTC "C1671" detected?
YES - Replace 4WAS front control unit. Refer to Exploded View.
NO - INSPECTION END




Special Repair Requirement

BEFORE REPLACING 4WAS FRONT CONTROL UNIT
- Record the self-diagnosis results (history).

CAUTION:
- Never erase the memory (history) of self-diagnosis results when replacing 4WAS front control unit after diagnosis.
- Erase the memory of the self-diagnosis results (record) after printing out or recording all the values of "DATA MONITOR".

AFTER REPLACING 4WAS FRONT CONTROL UNIT
- Perform 4WAS front actuator adjustment after replacing 4WAS front control unit. Refer to Special Repair Requirement (Pattern 2) Special Repair Requirement (Pattern 3), "4WAS FRONT ACTUATOR NEUTRAL POSITION ADJUSTMENT : Special Repair Requirement (Pattern 3)".
