C1205

C1205 AWD ACTUATOR RELAY





Description
AWD solenoid is supplied with voltage by the internal circuit of AWD control unit.




DTC Logic

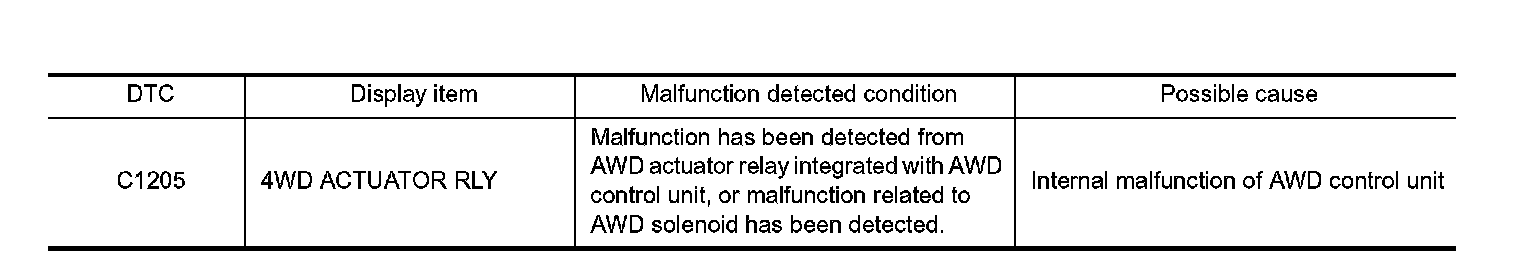

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC REPRODUCTION PROCEDURE
With CONSULT-III
1. Turn the ignition switch OFF to ON.
2. Perform AWD control unit self-diagnosis.
Is DTC "C1205" detected?
YES - Proceed to diagnosis procedure. Refer to C1205.
NO - INSPECTION END




Diagnosis Procedure
1.PERFORM SELF-DIAGNOSIS
With CONSULT-III
1. Erase AWD control unit self-diagnostic results.
2. Turn ignition switch OFF, and wait 10 seconds or more.
3. Perform AWD control unit self-diagnosis.
Is DTC "C1205" detected?
YES - Replace AWD control unit. Refer to Exploded View.
NO - Check AWD control unit pin terminals for damage or loose connection with harness connector. If any items are damaged, repair or replace error-detected parts.
