C1185

C1185 ICC UNIT





Description
The ABS actuator and electric unit (control unit) and the ICC sensor integrated unit exchange signals via the
CAN communication line.




DTC Logic

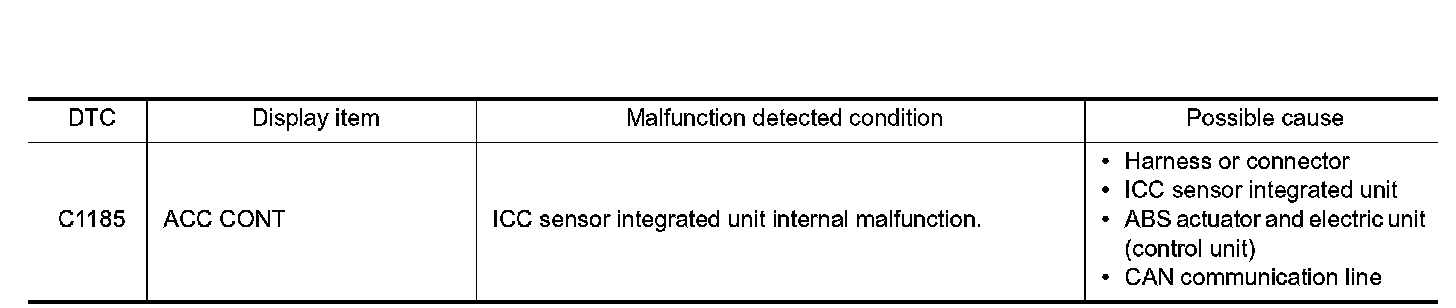

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

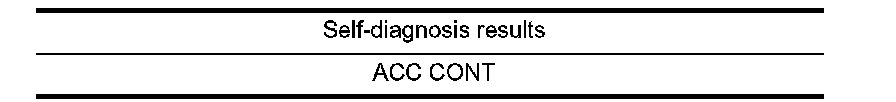

1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.





Is above displayed on the self-diagnosis display?
YES - Proceed to diagnosis procedure. Refer to C1185.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK ICC SENSOR INTEGRATED UNIT CIRCUIT
Perform ICC sensor integrated unit self-diagnosis.
Is any item indicated on the self-diagnosis display?
YES - Repair or replace malfunction components.
NO - GO TO 2.
2.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)
Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is any item indicated on the self-diagnosis display?
YES - Repair or replace malfunction components.
NO - INSPECTION END




Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Refer to Description.
- END
