C1170

C1110, C1153, C1170 ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)





DTC Logic

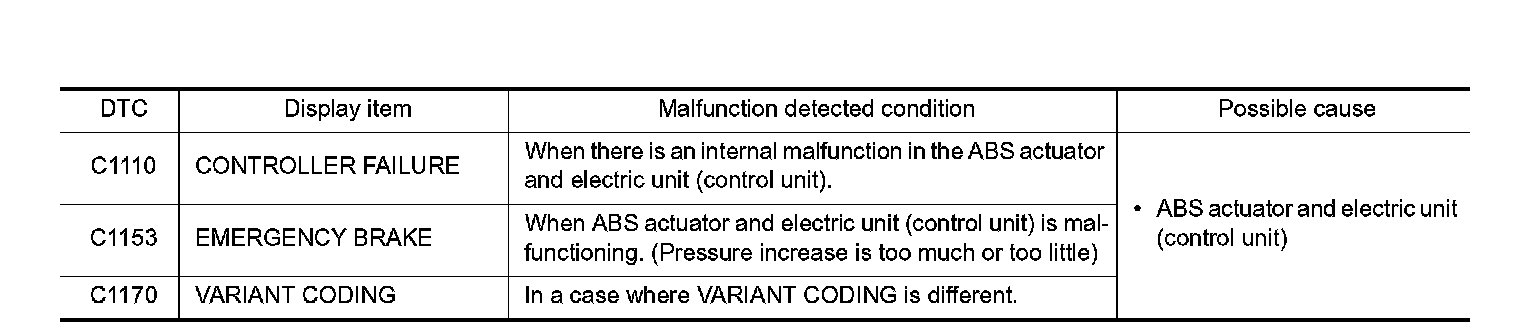

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

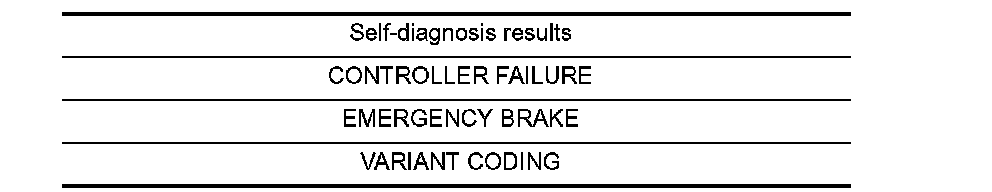

1.CHECK SELF-DIAGNOSIS RESULTS
Check the self-diagnosis results.





Is above displayed on the self-diagnosis display?
YES - Proceed to diagnosis procedure. Refer to C1110.
NO - INSPECTION END




Diagnosis Procedure
1.REPLACE ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

CAUTION:
Replace ABS actuator and electric unit (control unit) when self-diagnostic result shows items other than those applicable.
- Replace ABS actuator and electric unit (control unit).




Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the "ST ANGLE SENSOR ADJUSTMENT" in "WORK SUPPORT", when replacing the ABS actuator and electric unit (control unit).
- END
