C1116

C1116 STOP LAMP SWITCH





Description
The stop lamp switch transmits the stop lamp switch signal (ON/OFF) to the ABS actuator and electric unit
(control unit).




DTC Logic

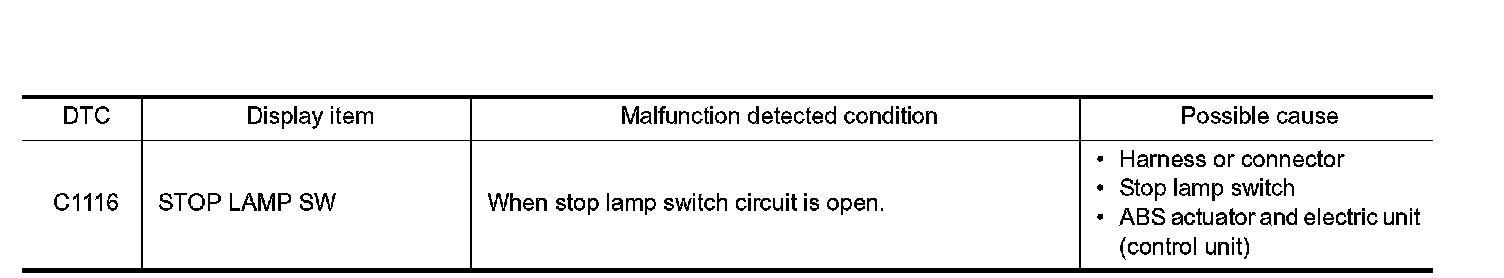

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAGNOSIS RESULTS

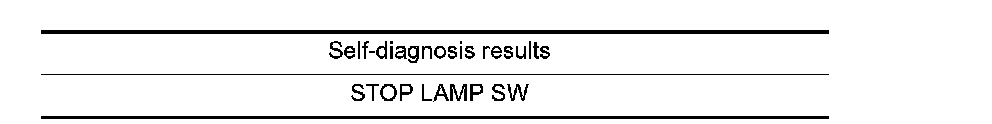

Check the self-diagnosis results.





Is above displayed on the self-diagnosis display?
YES - Proceed to diagnosis procedure. Refer to C1116.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) connector.
3. Disconnect stop lamp switch connector.
4. Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace terminal.
5. Reconnect connectors securely.
6. Start engine.
7. Repeat pumping brake pedal carefully several times, and perform self-diagnosis.
Is the inspection result normal?
YES - GO TO 2.
NO - Poor connection of connector terminal. Repair or replace connector.
2.CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch connector.

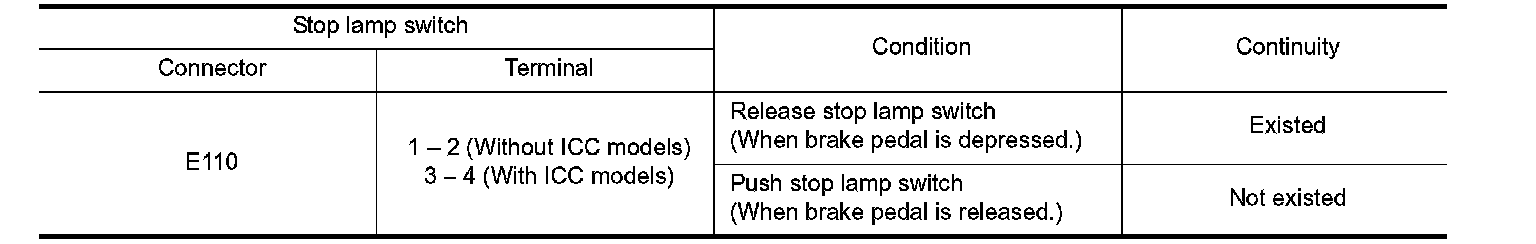

3. Check continuity between stop lamp switch connector terminals.





Is the inspection result normal?
YES - GO TO 3.
NO - Replace stop lamp switch.
3.CHECK STOP LAMP SWITCH CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Connect stop lamp switch connector.
3. Check voltage between ABS actuator and electric unit (control unit) harness connector terminal and ground.





Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit).
NO - Repair or replace malfunctioning components.




Component Inspection
1.CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch connector.

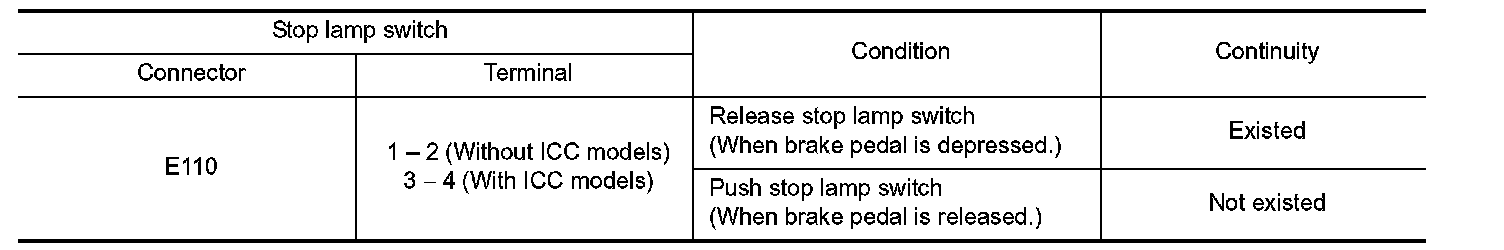

3. Check continuity between stop lamp switch connector terminals.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace stop lamp switch.




Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit). Refer to Description.
- END
