B2623

B2623 INSIDE KEY ANTENNA 3

Description
Detects whether Intelligent Key is inside the vehicle.
Installed in the trunk room.

DTC Logic

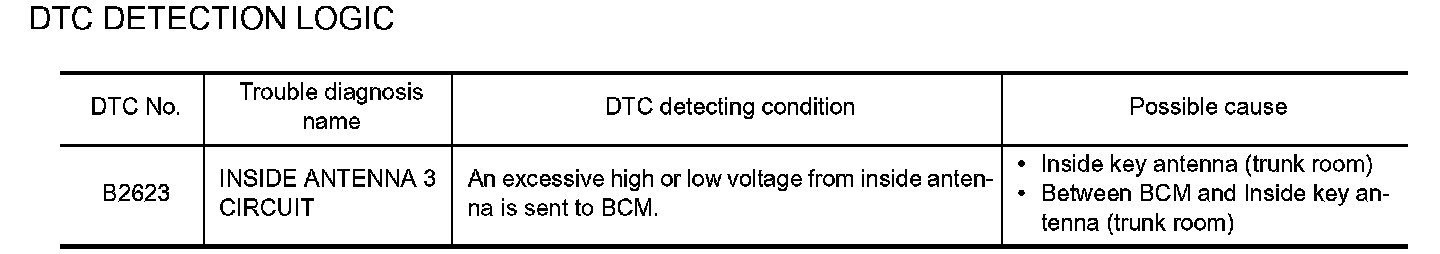

DTC DETECTION LOGIC

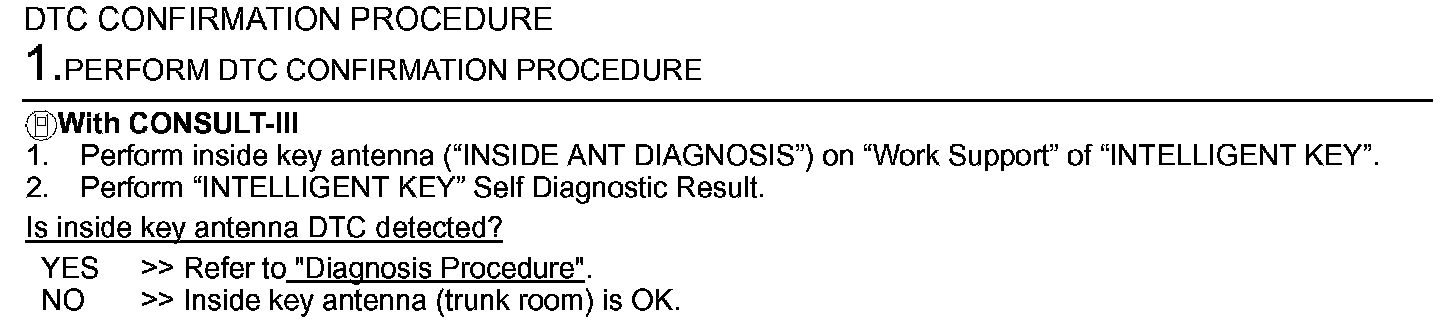

DTC CONFIRMATION PROCEDURE

Step 1:

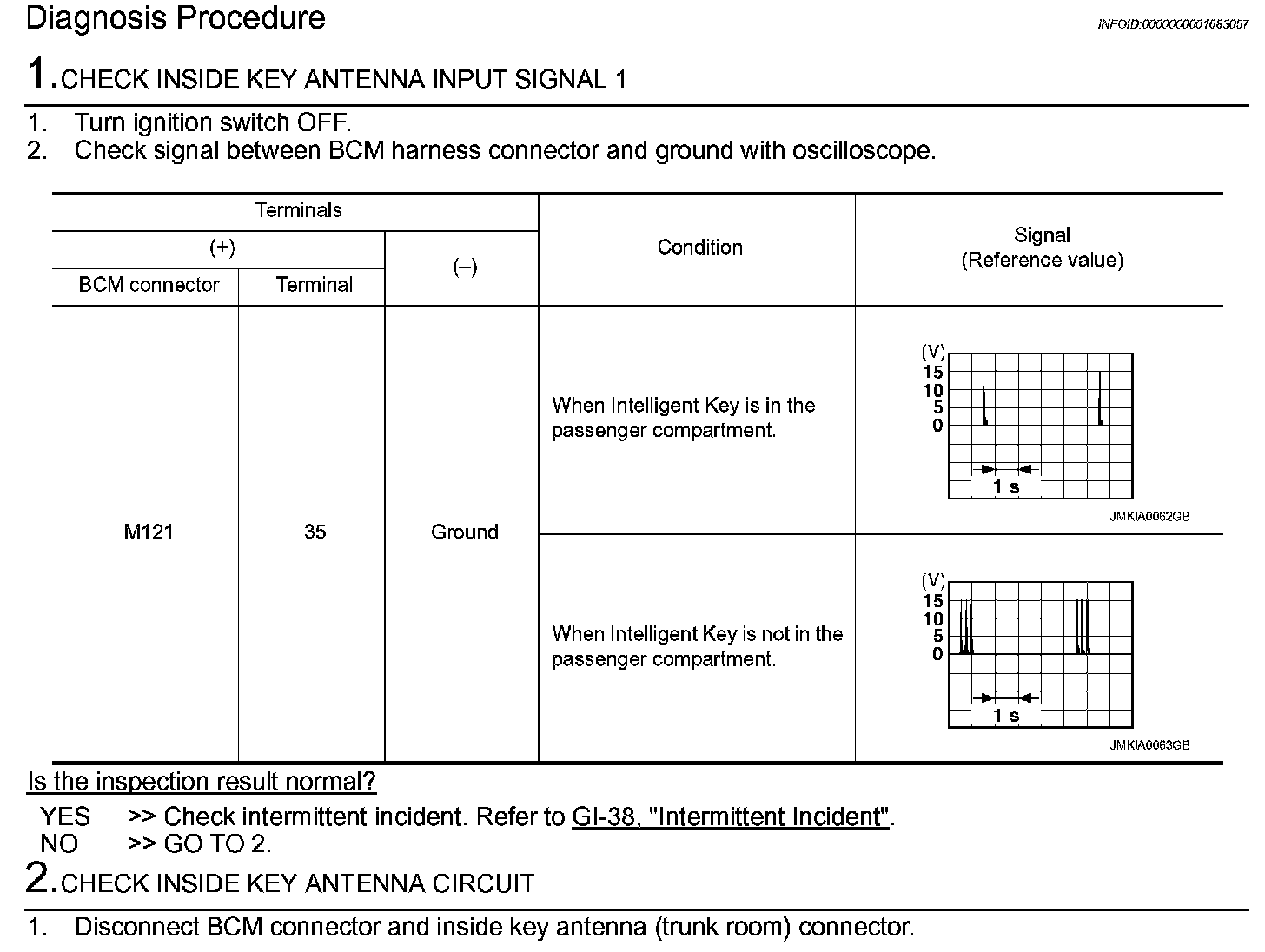

Diagnosis Procedure

Step 1-2:

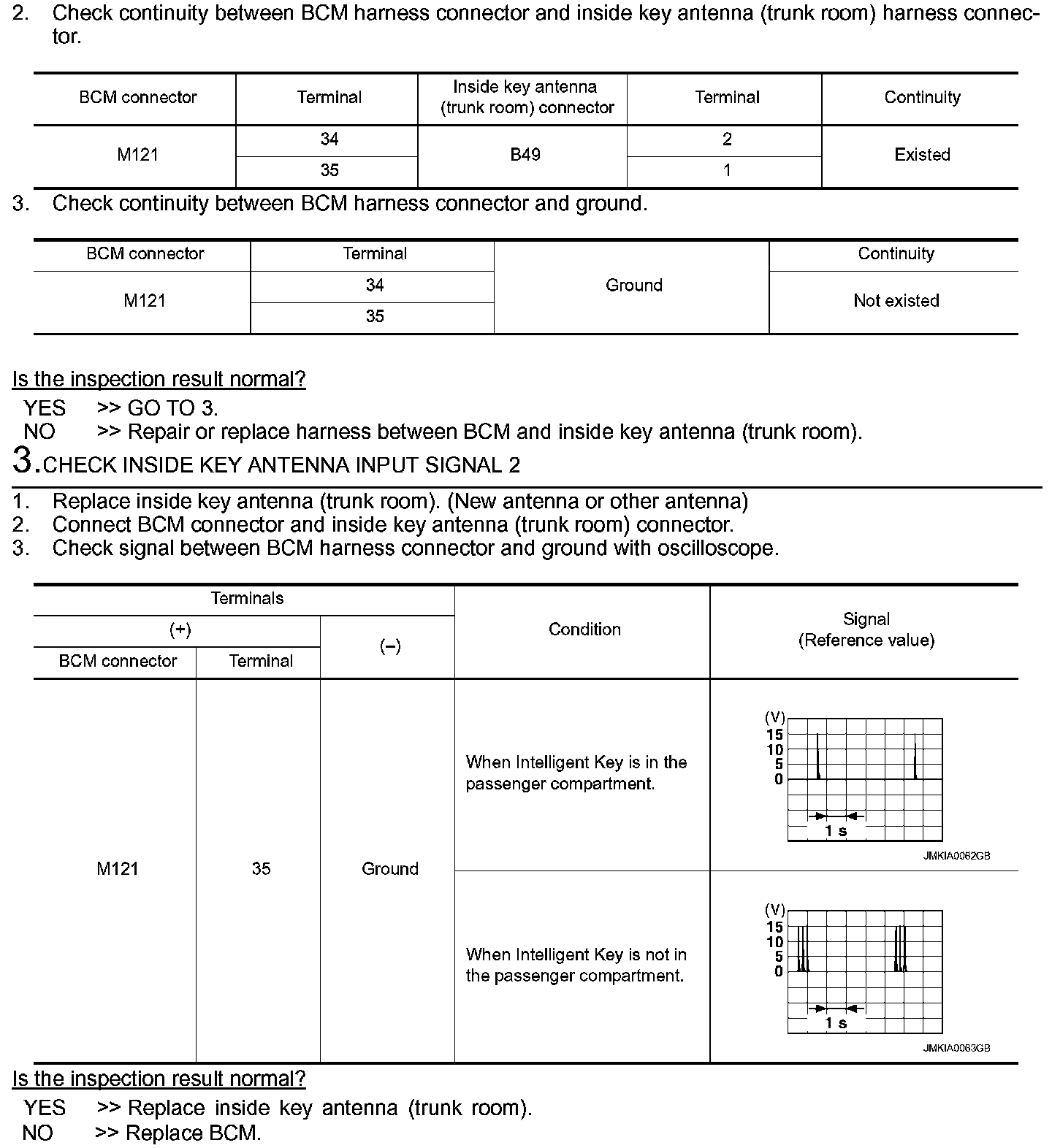

Step 2 (Continued)-3:
