B2622
B2622 INSIDE KEY ANTENNA 2Description
Detects whether Intelligent Key is inside the vehicle.
Installed in the center console.
DTC Logic

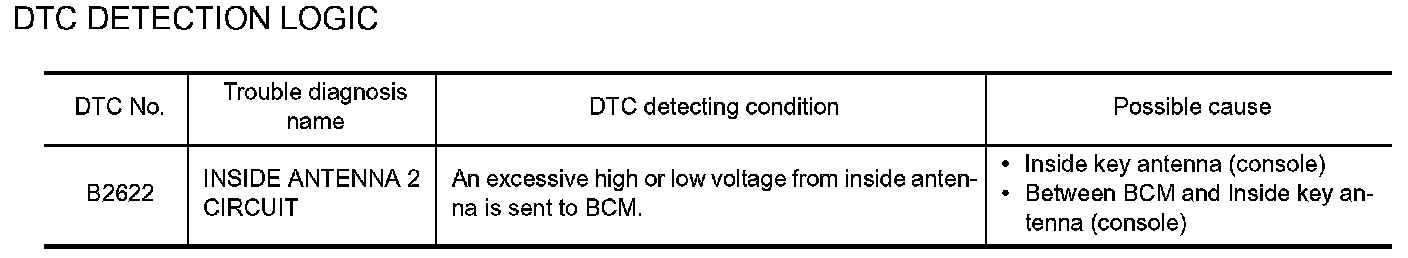

DTC DETECTION LOGIC

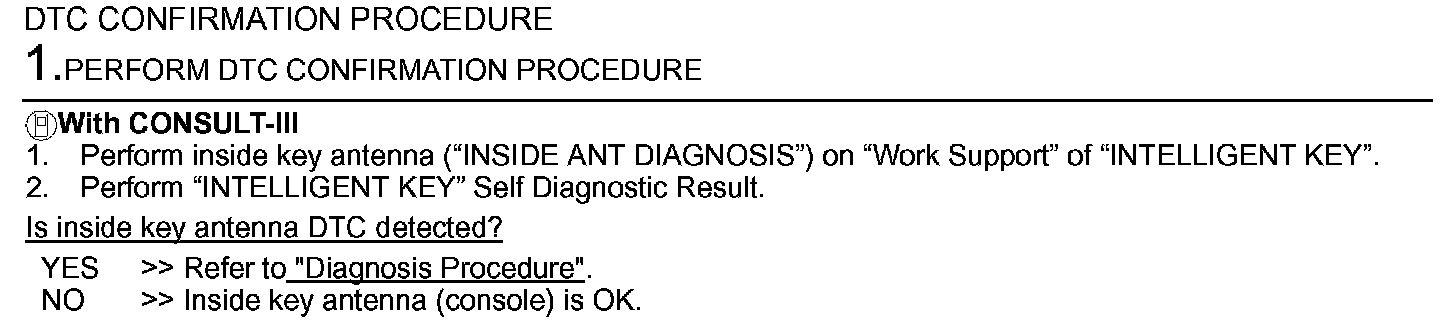

DTC CONFIRMATION PROCEDURE
Step 1:

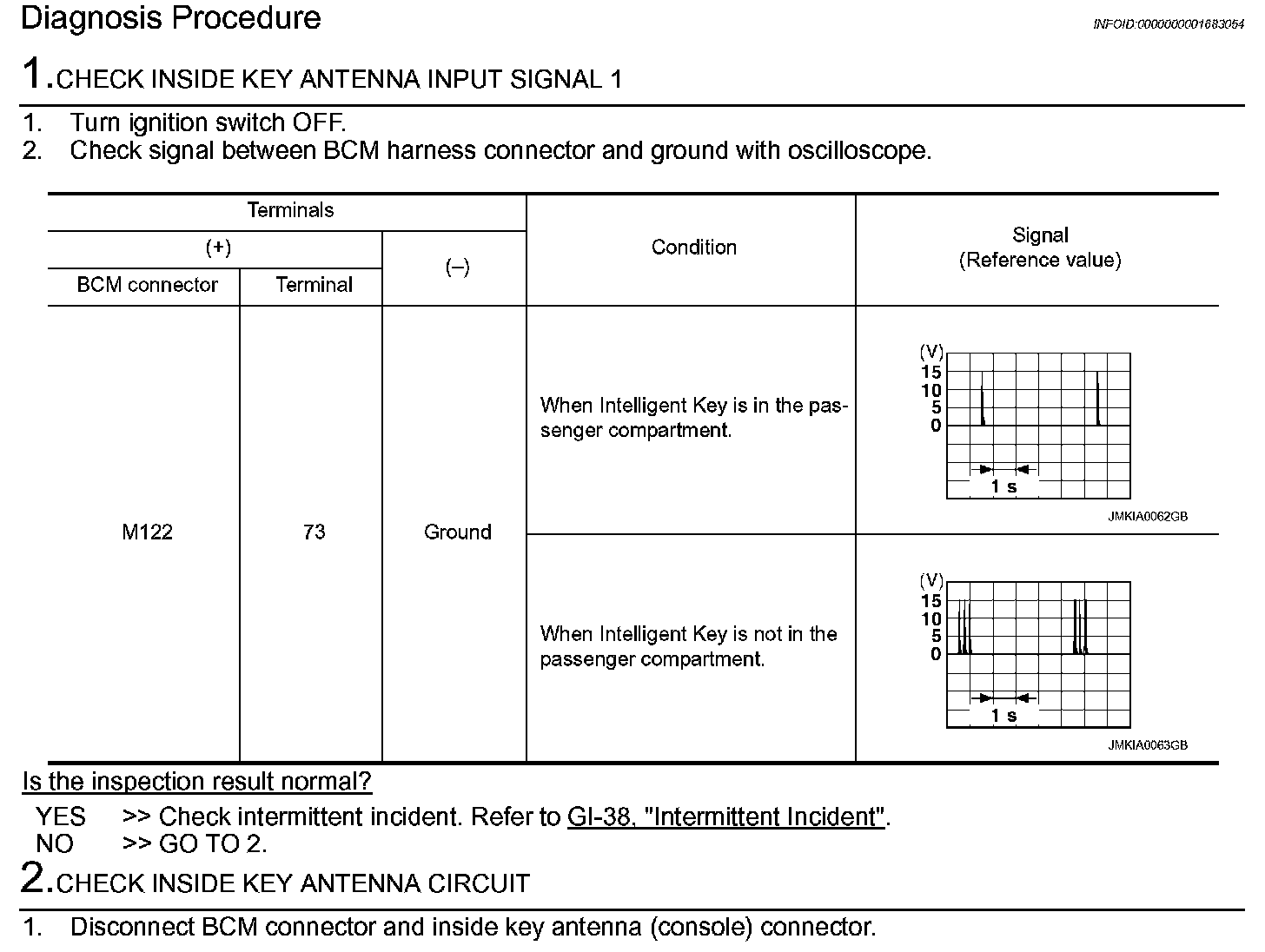

Diagnosis Procedure
Step 1-2:

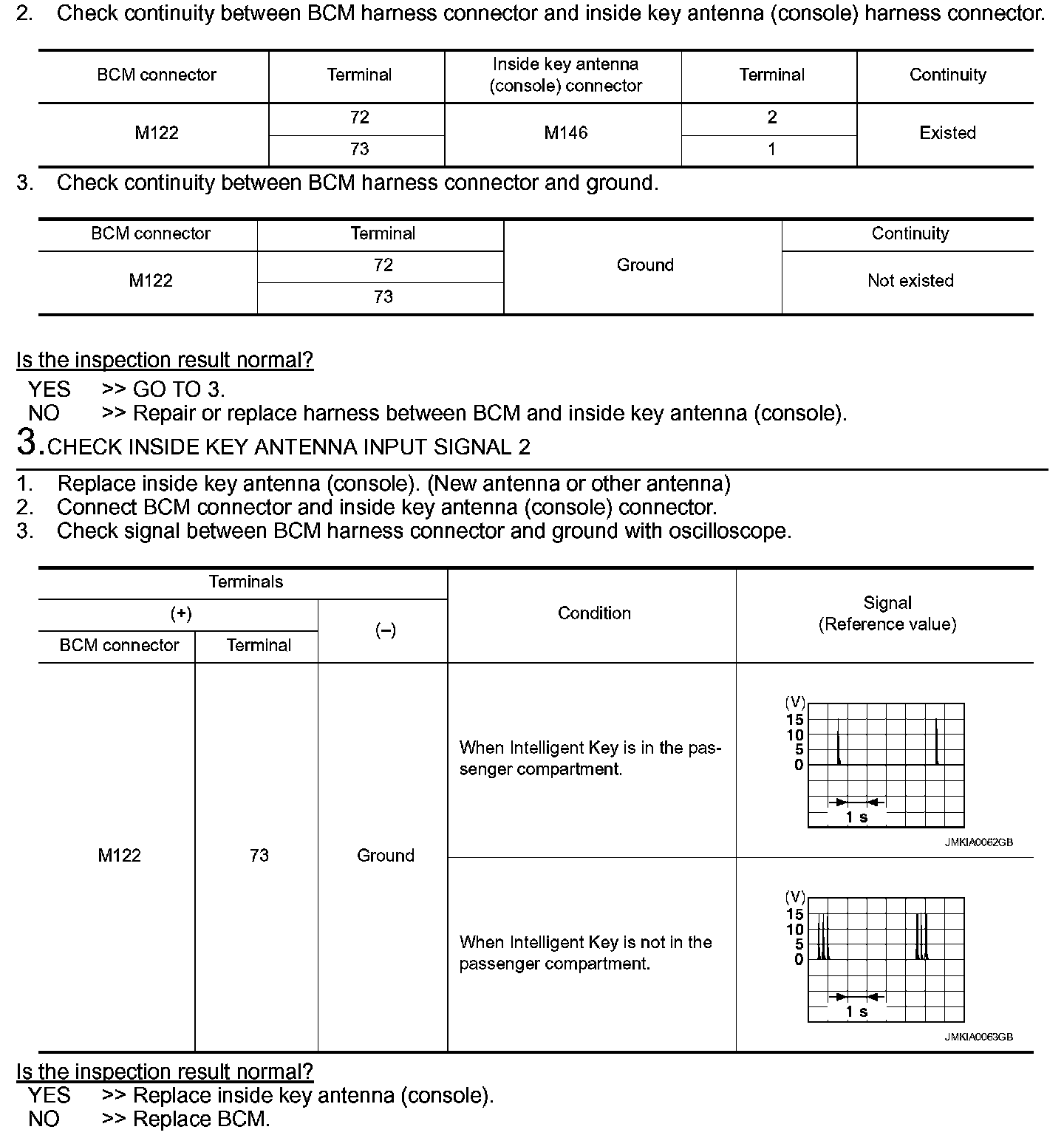

Step 2 (Continued)-3:
Description
Detects whether Intelligent Key is inside the vehicle.
Installed in the center console.
DTC Logic
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
Diagnosis Procedure
