B261E

B261E VEHICLE TYPE





Description
There are two types of vehicles.
- HEV
- Conventional




DTC Logic

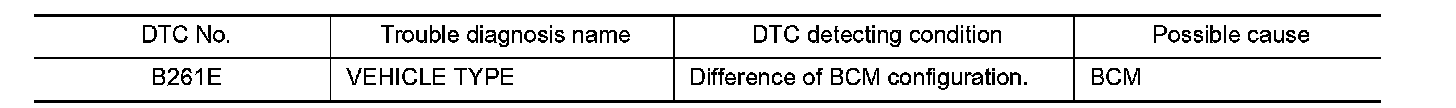

DTC DETECTION LOGIC

NOTE:
- If DTC B261E is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to Security System.
- If DTC B261E is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to Security System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnostic result" using CONSULT-III.
Is DTC detected?
YES - Go to B261E.
NO - INSPECTION END




Diagnosis Procedure
1.INSPECTION START
1. Turn ignition switch ON.
2. Check "Self-diagnostic result" using CONSULT-III.
3. Touch "ERASE".
4. Perform DTC Confirmation Procedure.
See B261E.
Is the 1st trip DTC B261E displayed again?
YES - Replace BCM. Refer to Removal and Installation.
NO - INSPECTION END
