B260F

B260F ENGINE STATUS





Description
BCM receives the engine status signal from ECM via CAN communication.




DTC Logic

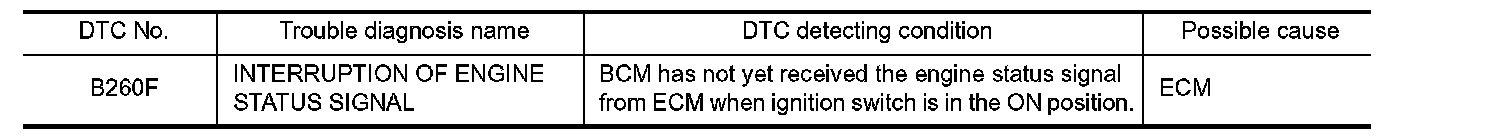

DTC DETECTION LOGIC

NOTE:
- If DTC B260F is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to Security System.
- If DTC B260F is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to Security System.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnostic result" using CONSULT-III.
Is DTC detected?
YES - Go to B260F.
NO - INSPECTION END




Diagnosis Procedure
1.INSPECTION START
1. Turn ignition switch ON.
2. Check "Self-diagnostic result" using CONSULT-III.
3. Touch "ERASE".
4. Perform DTC Confirmation Procedure.
See B260F.
Is the DTC B260F displayed again?
YES - GO TO 2.
NO - GO TO 3.
2.REPLACE ECM
Replace ECM.
- INSPECTION END
3.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
