B1023

B1023 PASS A/B INDCTR CKT





Description
Suppresses the deployment of front passenger air bag when the condition of passenger seat is empty or occupied with a child and child-seat. Also illuminates front passenger air bag OFF indicator lamp when the condition of passenger seat is occupied with a child-seat and child. In case of malfunction the blinking of the air bag warning lamp reports the malfunction to driver, and by the on board self-diagnosis system or CONSULT-III can detect the cause.

OPERATION
Illuminates front passenger air bag OFF indicator when the passenger seat is empty or occupied by a child or a child-seat.

STRUCTURE
Front passenger air bag OFF indicator with LED illumination.

INSTALLATION
Front passenger air bag OFF indicator is installed at the instrument panel center.




DTC Logic

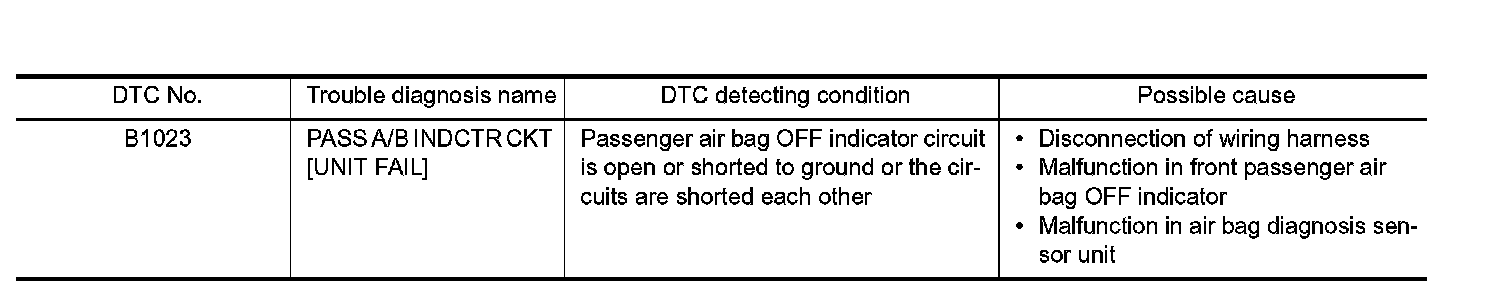

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.CHECK SELF-DIAG RESULT
With CONSULT-III
1. Turn ignition switch ON.
2. Perform "AIR BAG" Self Diagnostic Result CONSULT-III.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check the air bag warning lamp status. Refer to Component Tests and General Diagnostics.

NOTE:
SRS does not enter diagnosis mode if no malfunction is detected in user mode.
Is malfunctioning part detected?
YES - Refer to B1023.
NO - INSPECTION END




Diagnosis Procedure

WARNING:
- Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait at least 3 minutes. (To discharge backup capacitor.)
- Never use unspecified tester or other measuring device.

DIAGNOSTIC PROCEDURE
1.CHECK HARNESS CONNECTOR
Check the connection of harness connector.
Is the inspection result normal?
YES - GO TO 2.
NO - Replace harness connectors.
2.CHECK WIRING HARNESS
Check the wiring harness externals.
Is the inspection result normal?
YES - GO TO 3.
NO - Replace wiring harness.
3.CHECK PASSENGER AIR BAG OFF INDICATOR
1. Replace front passenger air bag OFF indicator. Refer to Exploded View
2. Perform DTC confirmation procedure. Refer to B1023.
Is DTC detected?
YES - GO TO 4.
NO - INSPECTION END
4.REPLACE AIR BAG DIAGNOSIS SENSOR UNIT
1. Replace air bag diagnosis sensor unit. Refer to Exploded View.
2. Perform DTC confirmation procedure. Refer to B1023.
Is DTC detected?
YES - GO TO 1.
NO - INSPECTION END
