Common Item

DIAGNOSIS SYSTEM (BCM)


COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

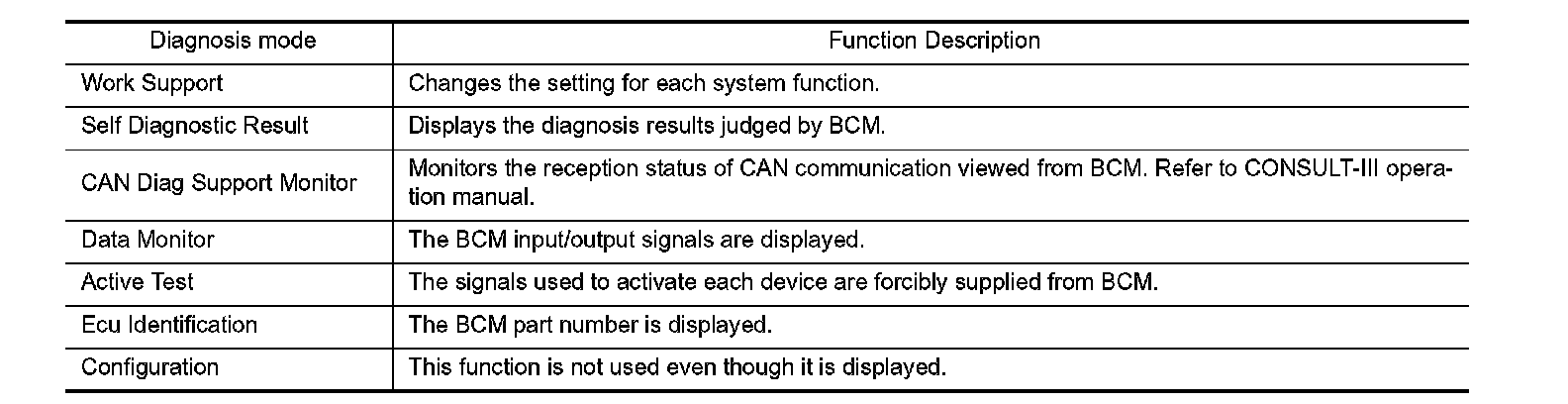

APPLICATION ITEM
CONSULT-III performs the following functions via CAN communication with BCM.

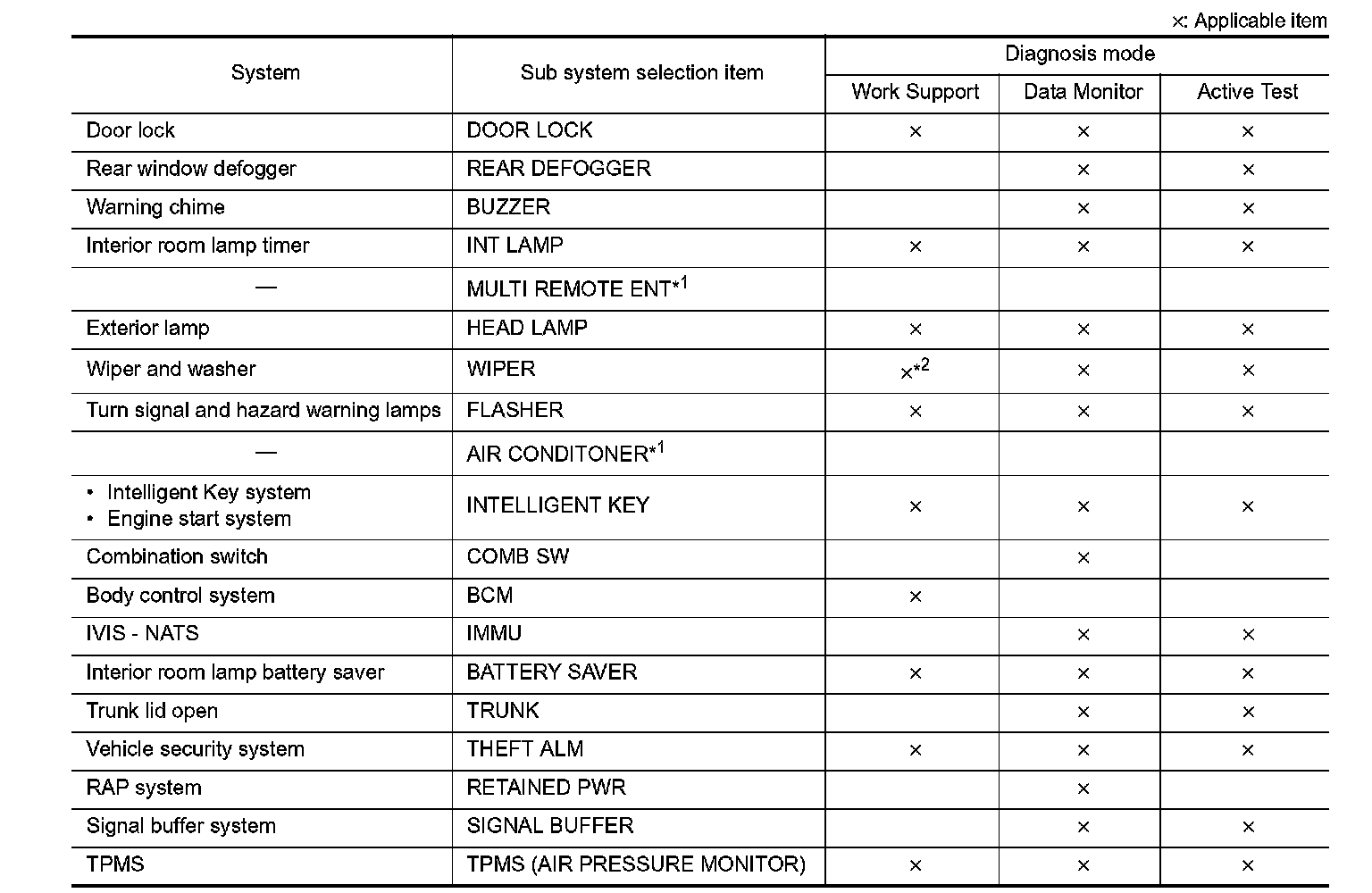

SYSTEM APPLICATION
BCM can perform the following functions for each system.

NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.





NOTE:
^ *1: This item is displayed, but is not used.
^ *2: At models with rain sensor this mode is displayed, but is not used.

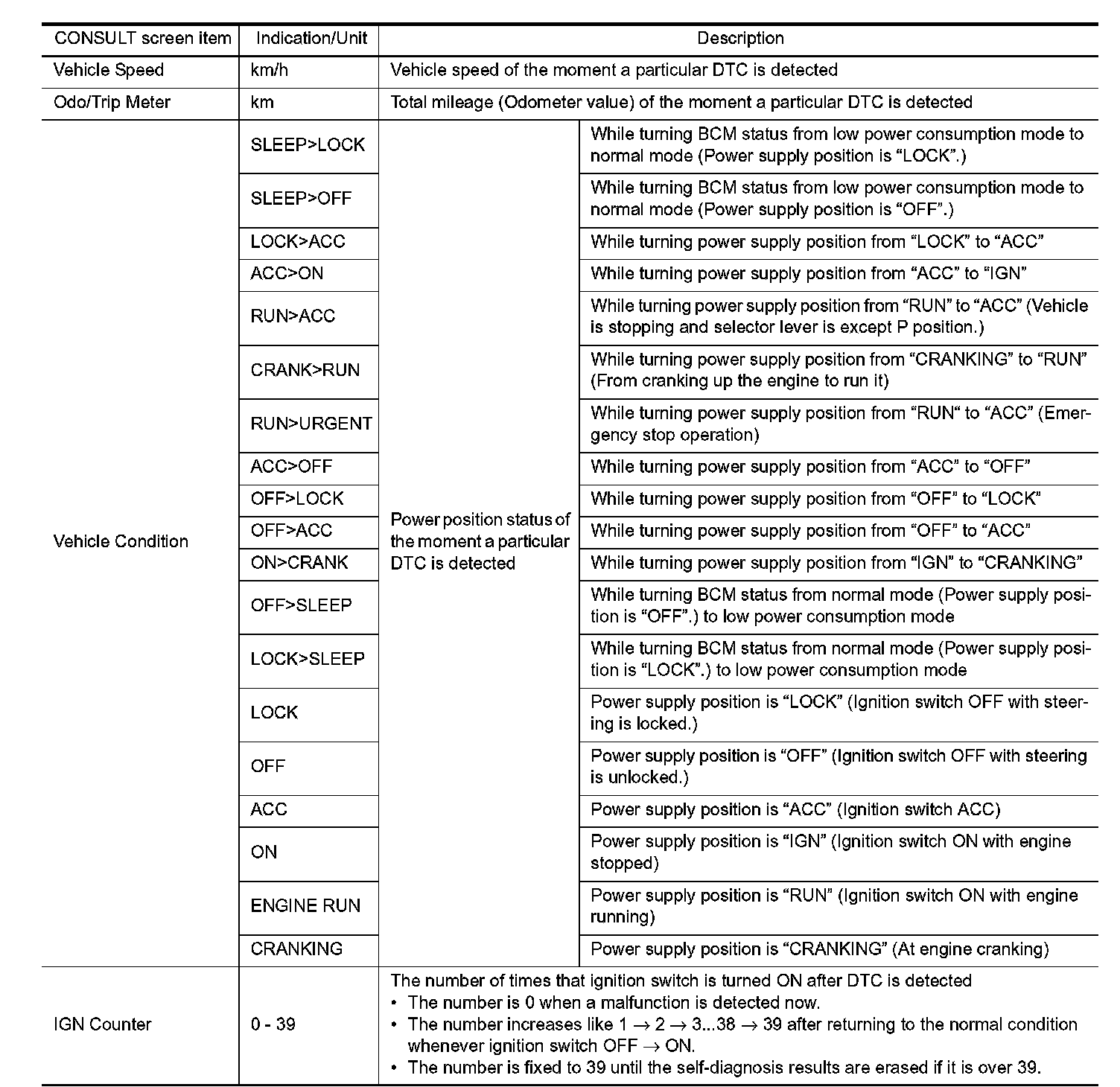

FREEZE FRAME DATA (FFD)
The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT-III.
